Feature:
1. Able to test DC AC voltage, DC current, resistance, diodes, and carry out on off circuit test, NCV detection, neutral and live wire identification.
2. Compact and lightweight design, making it extremely portable and easy to carry.
3. Comes with a protective rubber case to ensure durability, and two test s slots for better storage.
4. Built in flashlight makes it convenient to use at night or dark corner, and it also provides buzzer alarm and LED warning light.
5. Equipped with easy to read LCD display which shows 1999 counts clear readings, easy to read.
6. Ideal tool for home circuit installation, electronics repair, electrical facilities maintenance, automobile repair, home appliances repair.
Specification:

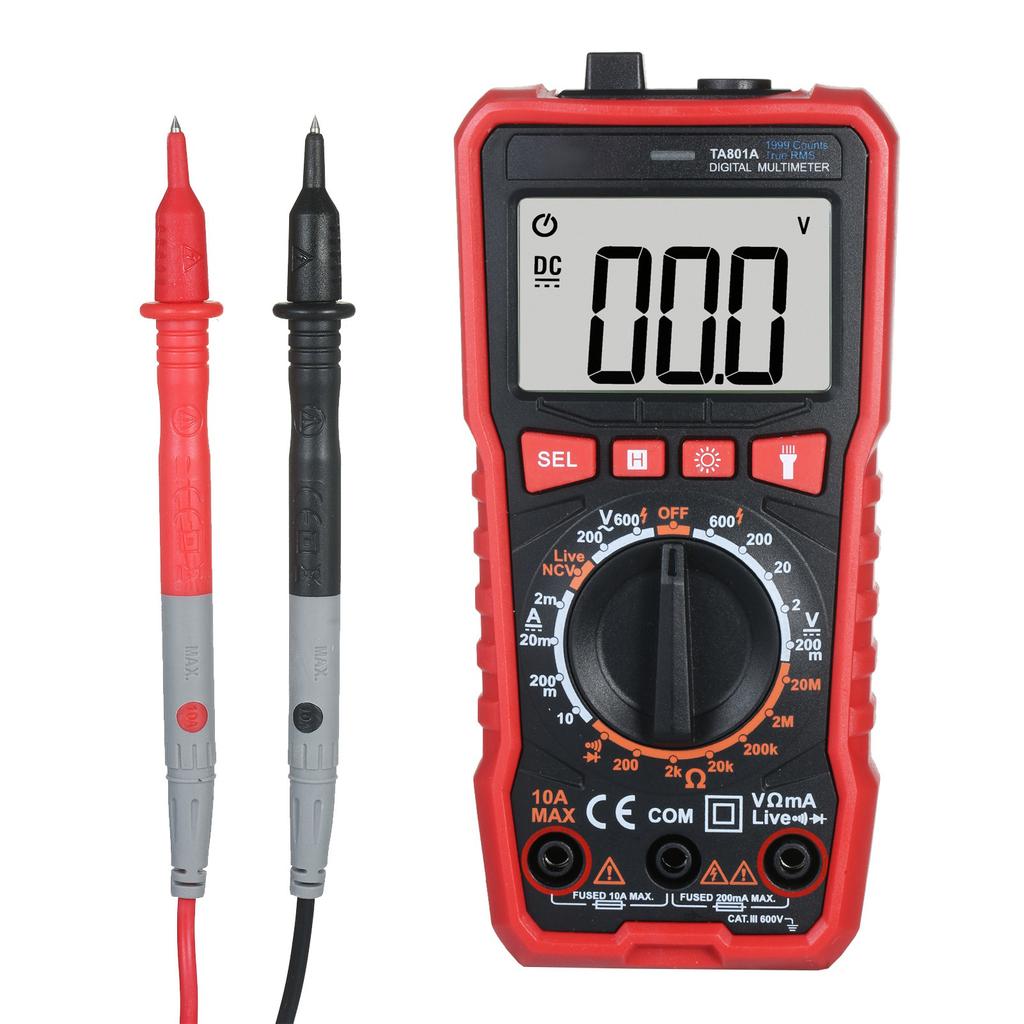

TA801A is a mini digital multimeter with 3 1 2 digit display and manual range. It features stable performance, high accuracy, high reliability and over load guard function. It can measure multiple parameters, including DC AC voltage, DC current, diodes, and carry out on off circuit test, NCV detection, neutral and live wire identification.
Specifications:
Material: ABS
Model(Optional)
TA801A
TA801B
TA801C
TA801D
DC voltage
0.1mV 600V
+ (0.5percent +2)
0.1mV 600V
+ (0.8percent +5)
0.01uV 600V
+ (0.5percent +2)
0.1mV 600V
+ (0.5percent +3)
AC voltage
0.1V 600V
+ (1.2percent +3)
1mV 600V
+ (1.0percent +3)
0.01uV 600V
+ (1.0percent +3)
0.001V 600V
+ (1.0percent +3)
DC current
1uA 10A
+ (1.0percent +2)
1uA 10A
+ (1.0percent +2)
1uA 10A
+ (1.0percent +2)
0.01mA 600mA
+ (1.2percent +10)
AC current
N A
0.01uA 10A
+ (1.0percent +5)
0.01uA 10A
+ (1.0percent +5)
0.01mA 600mA
+ (1.2percent +10)
R
0.1 Ohm 20M Ohm
+ (0.8percent +3)
0.1 Ohm 60M Ohm
+ (0.8percent +2)
0.1 Ohm 100M Ohm
+ (0.8percent +2)
0.1 Ohm 60M Ohm
+ (0.8percent +10)
Capacitance
N A
nF 60000microfarad
+ (3.0percent +5)
1nF 100000microfarad
+ (3.0percent +10)
1nF 60000microfarad
+ (3.5percent +20)
Frequency
N A
10 10MHz
+ (0.1percent +5)
10 10MHz
+ (0.1percent +3)
40 10MHz
+ (0.1percent +3)
Diode
2.2V
3.2V
3.2V
3V
NCV voltage sensing
Yes
VFC measurement
N A
N A
Yes
N A
Smart anti burn
Yes
True RMS
Yes
On off beep
Yes
Data hold
Yes
Auto shut down
15 min
Range
Manual Range
Auto&Manual Range
Auto Range
Auto Identification Range
Display counts
1999
5999
9999
5999
Input impedance
10M Ohm
Sampling rate
About 3 times sec
Display size
49x31mm
Power supply
2*AAA batteries (Not included)
Working environment temperature
0 celsius 40 celsius
Working environment humidity
less than 80percent RH No condensation
Item Size: 148 * 70 * 42mm 5.82 * 2.75 * 1.65in
Item Weight: 188g 6.63oz
Package Weight: 331g 11.67oz
Package Size: 17.5 * 10.5 * 5.5cm 6.88 * 4.13 * 2.16in
.
Package List:
1 * Digital Multimeter
1 * Pair of dedicated test s
1 * User Manual (English)
