Pikakyu LED Monster L8400 Yellow Glass Lens Fog Lamp Kit for Toyota Noah Series H16 Glass Lens Fog Lamp Part Number 66152 (90 S-Z/S-G Grades), 8400lm,










Beskrivelse

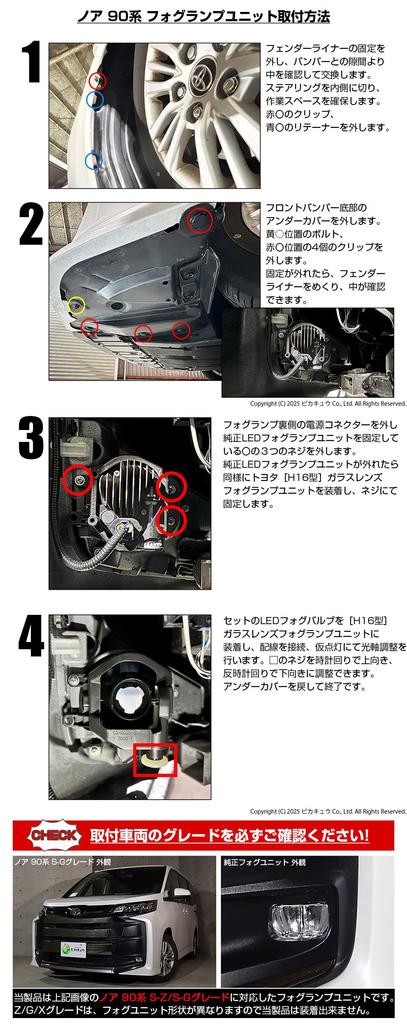

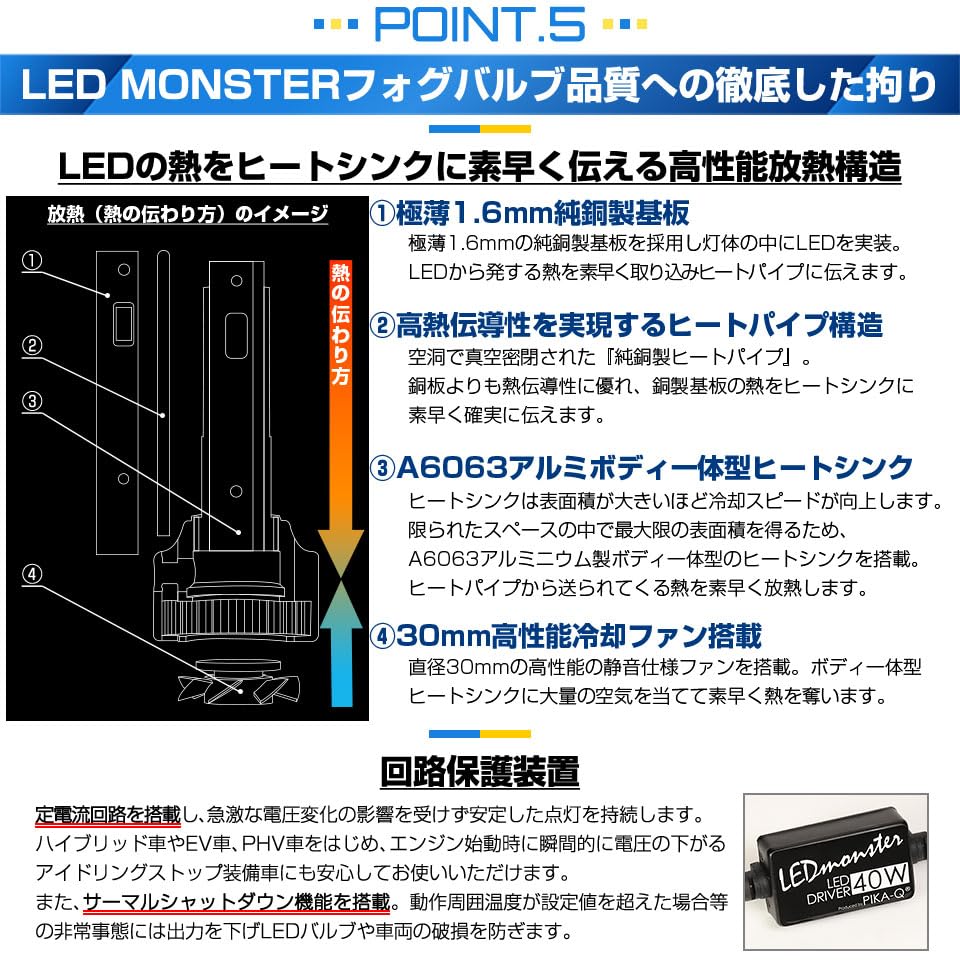

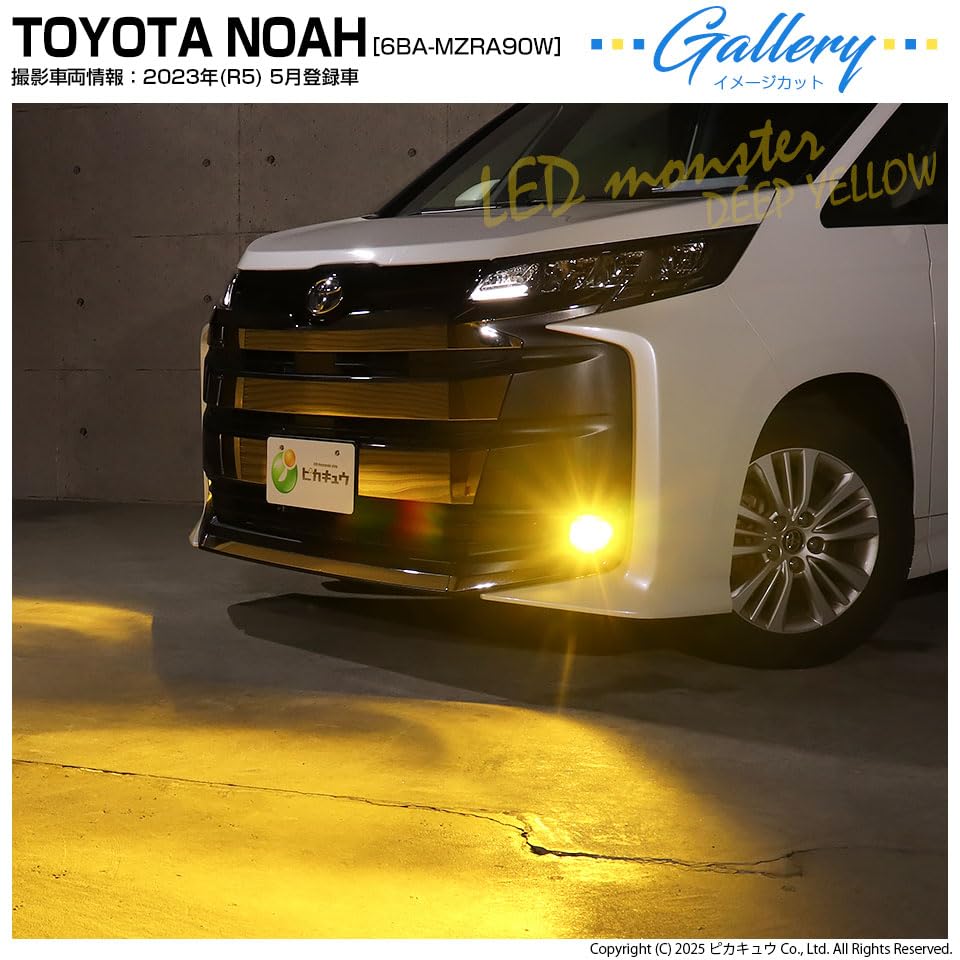

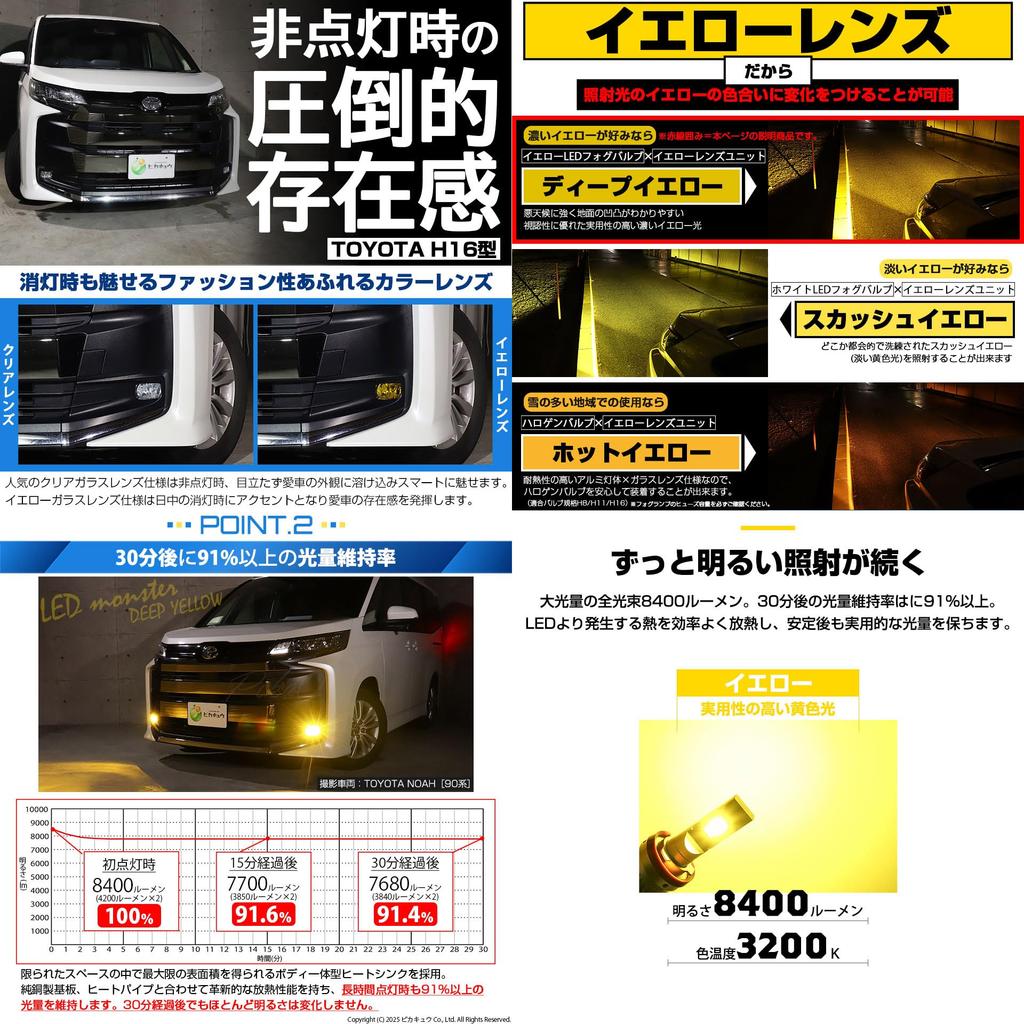

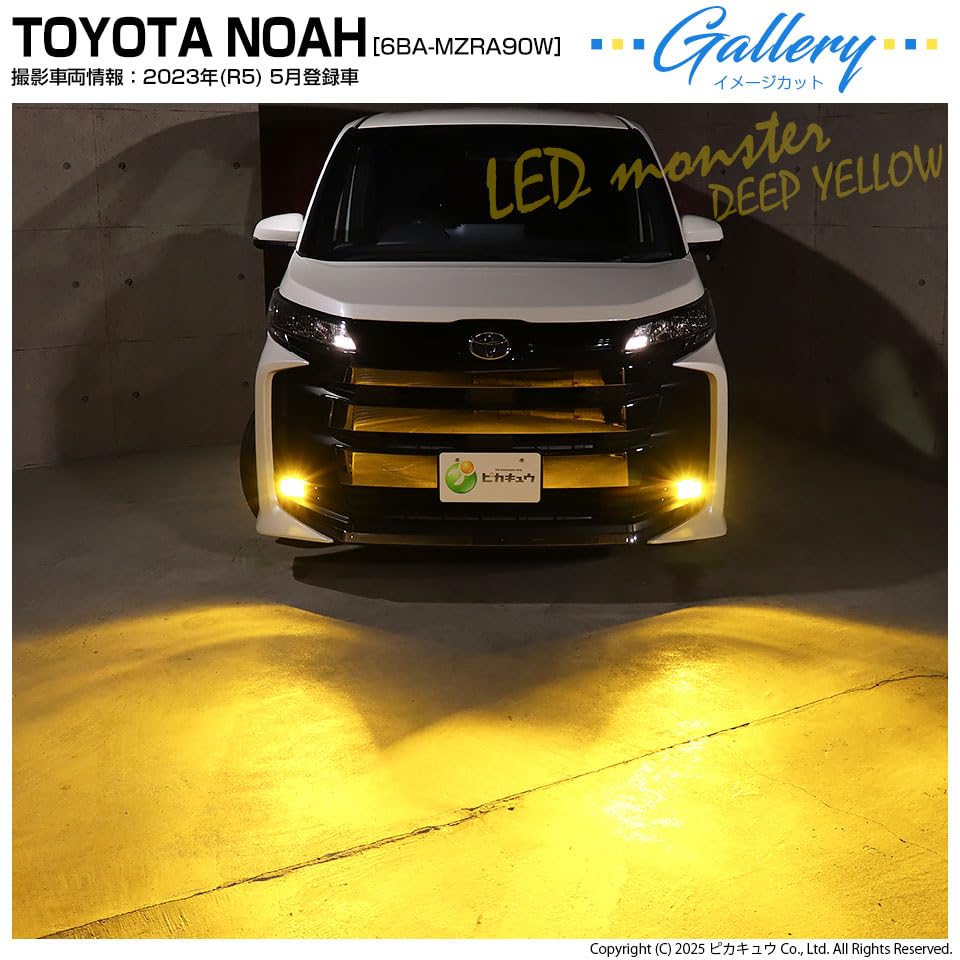

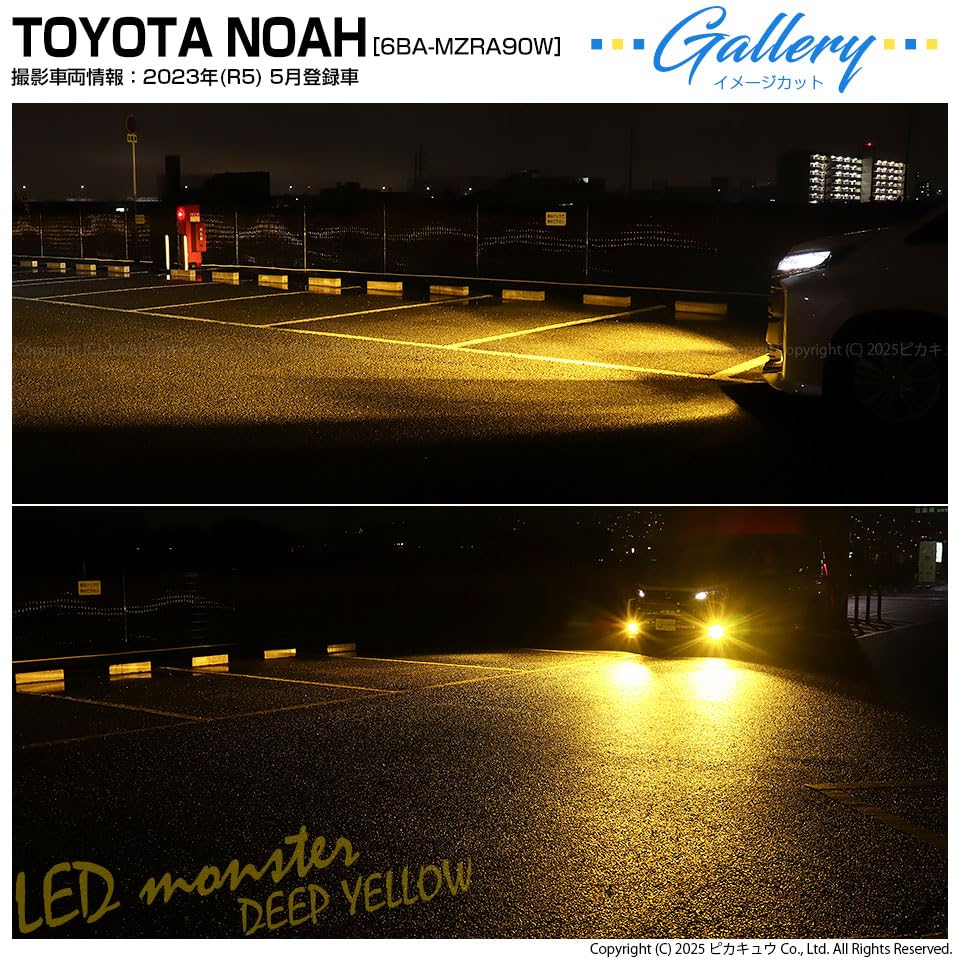

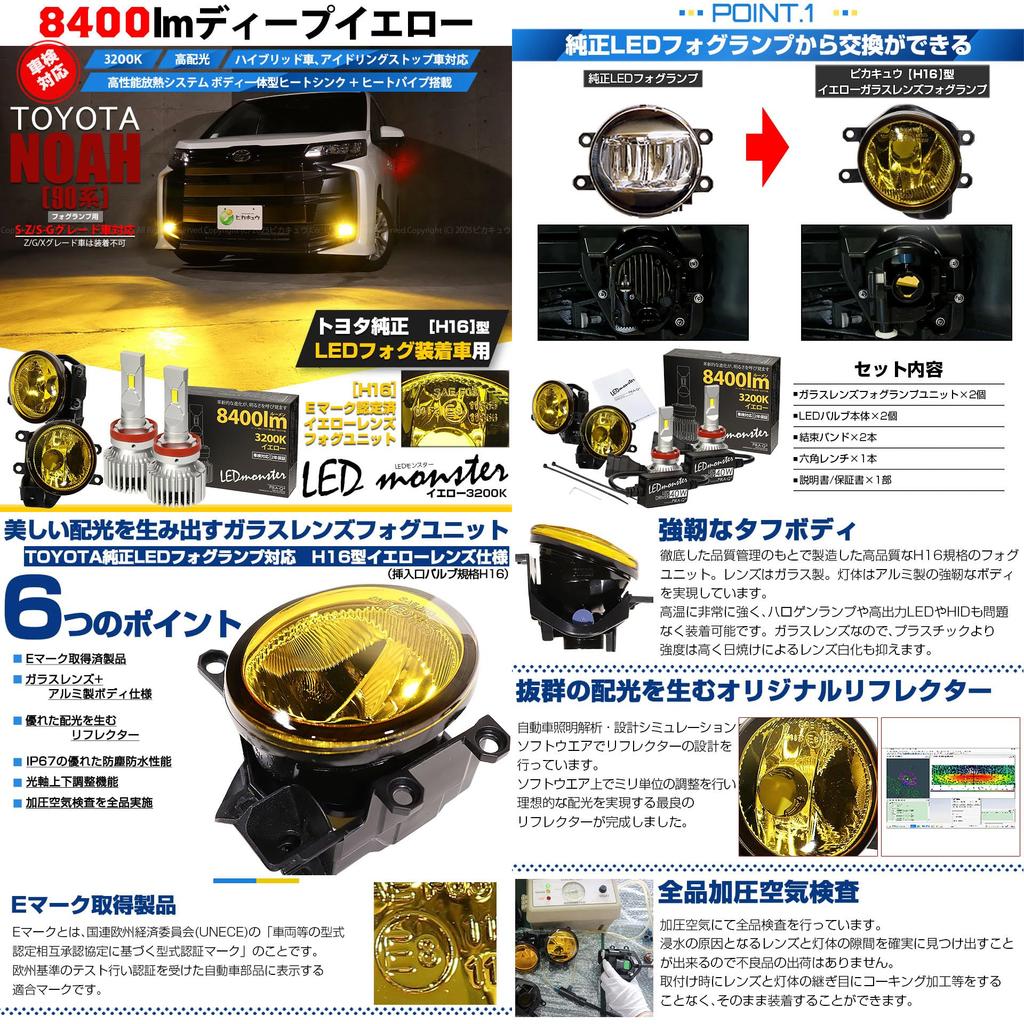

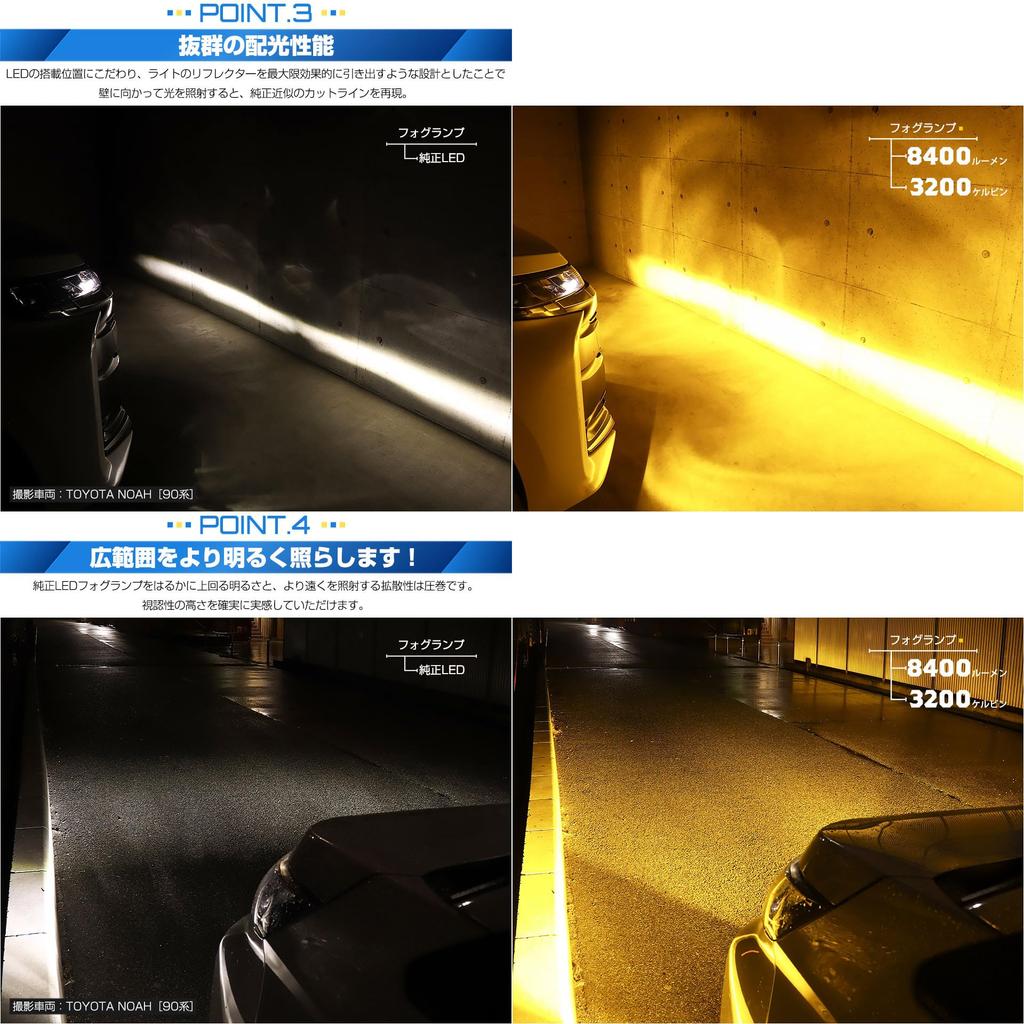

Specifications: For DC12V vehicles only [Compatible with HV, EV, and PHV vehicles] Valve standard: H16 (common to H8/H11/H16) Color: Yellow Color temperature: 3200 Kelvin (K) Brightness: Total luminous flux 8400 lumens (lm) *The lumen value indicates the value for two bulbs (one vehicle). Protection functions: Thermal shutdown function, constant current circuit Power consumption: 40W Polarity: non-polar [Image vehicle: Noah, model: 6BA-MZRA90W, registered in May 2023] E mark [H16 type] Yellow glass lens LED MONSTER L8400 LED Fog Lamp Kit Total luminous flux: 8400lm LED color: Yellow 3200K Valve standard: H16 (common to H8/H11/H16) Monster-class LED bulb that brings together the best of Pikakyu's technology This kit allows you to replace your factory LED fog lamps with brighter, more powerful LED fog lamps. This product replaces your Toyota's factory fog lamp units with yellow glass lens fog lamp units and installs Pikakyu's popular LED Monster 8400 lumen fog bulbs. The yellow lens allows the yellow LED light to pass through, creating a deep yellow light. The yellow lens also makes the fog lights stand out even when not lit. E-mark certified yellow glass lens fog unit that achieves high quality and durability Pikakyu's original narrow reflector, designed from the mold, achieves outstanding light distribution. The yellow lens allows you to adjust the shade of yellow light depending on the bulb color you install. It will make your car stand out even when the light is off. [1] Yellow glass lens specification [2] Strong and tough body "aluminum lamp body" [3] High dust and water resistance rating "IP67" (all products undergo pressurized air testing) [4] Equipped with light distribution adjustment function [5] E-mark certified product The LED MONSTER fog bulb boasts a total luminous flux of 8400 lumens, surpassing the stock. It features a cut line that maximizes reflector performance. This is the most powerful monster LED fog lamp bulb, boasting a total luminous flux of 8400 lumens. Its excellent heat dissipation performance allows it to maintain over 91% of its light output even after extended use. Its heat dissipation measures ensure that there is almost no change in brightness even after 30 minutes. Its meticulous attention to the light distribution characteristics of the original bulb ensures ideal light distribution. [1] [Heat pipe structure]: Equipped with a heat pipe with extremely high thermal conductivity. [2] [High thermal conductivity copper substrate]: Uses an ultra-thin pure copper substrate with high thermal conductivity. [3] [Body-integrated heat sink]: Equipped with a body-integrated heat sink to maximize surface area in a limited space. [4] [Equipped with a quiet electric cooling fan]: Equipped with a 30mm electric cooling fan that provides stable heat dissipation. [5] [Equipped with thermal shutdown function]: In an emergency, such as when the ambient temperature around the bulb exceeds the set value, the output is reduced to prevent damage to the LED bulb or vehicle. [6] [Equipped with constant current circuit]: Equipped with a constant current circuit, it ensures stable lighting without being affected by sudden changes in vehicle voltage. [Please read] This product is compatible with the 90 series Noah S-Z/S-G grades. It cannot be installed on the Z/G/X grades because the shape of the fog unit is different. ◆If installing on a vehicle that does not have fog lights, you may need to purchase a fog light switch and harness separately, or modify the bumper. ◆When installing the bulb, the bulb's gasket may become deformed due to friction. This may cause water to seep into the fog unit. When installing the bulb, twist the bulb left and right several times to allow the gasket to fit snugly. If it is difficult to fit, moisten the gasket with a wet towel or similar to allow it to fit snugly before installing. ◆Depending on the specifications and options, even if the genuine fog lamp unit is installed, it may not be possible to install it due to differences in the shape of the brackets, etc., or due to space behind the fog lamps. Please be sure to check the shape and dimensions of the fog lamps installed on your vehicle before purchasing.
