Feature:
1. 5 Inch Display: This video surveillance tester features a 5 inch display, the screen is protected by a film and rubberized on both sides so you can use it in different environments.
2. Wide Application: This video surveillance tester can perfectly test AHD cameras, TVI cameras and CVI cameras up to 8MP, which is perfect for upgrading old CCTV analog signal systems. This CCTV tester also supports UTP cable testing.
3. Large Capacity Battery: This video surveillance detector utilizes a large capacity battery, which allows the CCTV monitor to work for a long time and is easier to replace.
4. 12V DC Power Output: This video surveillance tester has a 12V DC power output, which allows you to power the camera separately when it is difficult to provide a separate power supply.
5. Excellent ABS Shell: This video surveillance detector is made of excellent ABS material, which is sturdy and wear resistant, not easy to be damaged, and has a long service life.
Specification:
Item Type: CCTV Monitor Camera Tester
Material: ABS
Battery: 3.7V Polymer Lithium Battery x 1 (3000 mAh) ( Shipped With Built In Battery )
Language: 12 Languages Supported
PTZ Controller: Support RS485, Compatible With for PELCO D P Protocol, Baud Rate 2400 19200bps
UTP Cable Tester: Enhanced UTP Cable With Indicator, Test Distance up to 100 150 Meters
Signal Mode: NTSC PAL ( Automatic Adaptation )
UTC OSD Control: UTC Control, Call OSD Menu
Video Signal Test Function
HD Video Surveillance Tester, Built In HD 5 Inch TFT LCD, 480X272 Resolution Wide Viewing Angle Display, Support PAL or NTSC Image Signal
PTZ Control Function:
Video surveillance tester has built in for Pelco D P and other PTZ control protocols, through the RS485 interface, you can control the PTZ up, down, left, right and zoom, focus, aperture size.
DC12V 1A Power Output Function:
The video surveillance tester is specially designed for the power supply of the camera with a 12V 1A power output port to provide temporary power supply for the camera.
Voice Test Function:
The voice test function of the video surveillance tester can test the voice devices such as pickups in the front end of the video surveillance.
Enhanced Network Cable Test Function:
Network cable test function through the UTP CABLE TEST test port on the meter.
TVI coaxial HD video surveillance test, support 720p, 25 or 30fps, 1080p, 25 or 30fps ,3MP, 4MP 5MP, 8MP resolution camera image test, AHD coaxial HD video surveillance test, support 720p, 25 or 30fps, 1080p, 25 or 30fps, 4MP, 5MP, 8MP resolution camera image test CVI Coaxial HD video surveillance test, support 720p 25 or 30fps, 1080p 25 or 30fps, 4MP or 5MP or 8MP resolution camera image test..

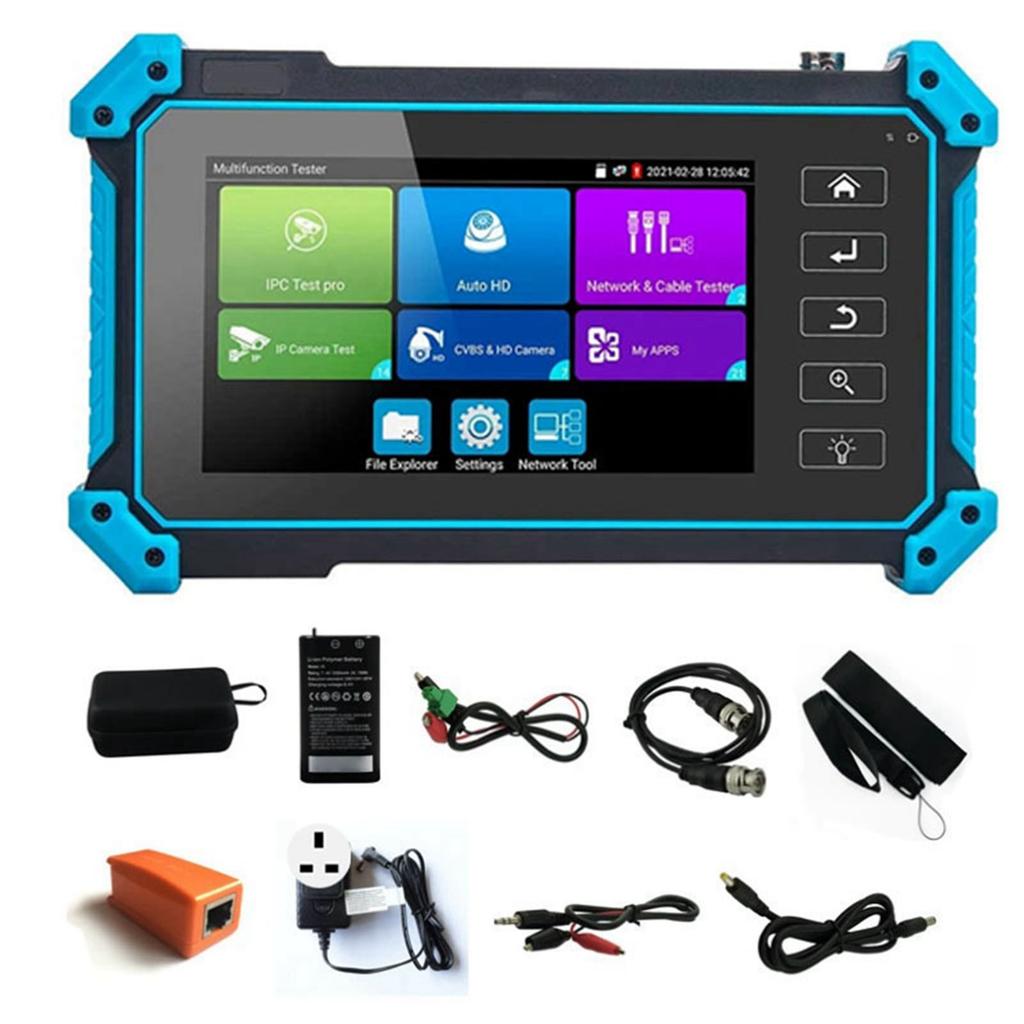

Package List:
1 x CCTV Monitor Camera Tester1 x Storage Bag2 x Safety Rope1 x BNC Cable1 x Voice Test Cable1 x RS485 Control Cable1 x Charging Cable1 x Test Box1 x Adapter1 x Accessory1 x Manual
