【Voltage Compatibility】
Our products are selected to support international voltage ranges (e.g. 100–240V).
However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment.
---------------------------------------------------

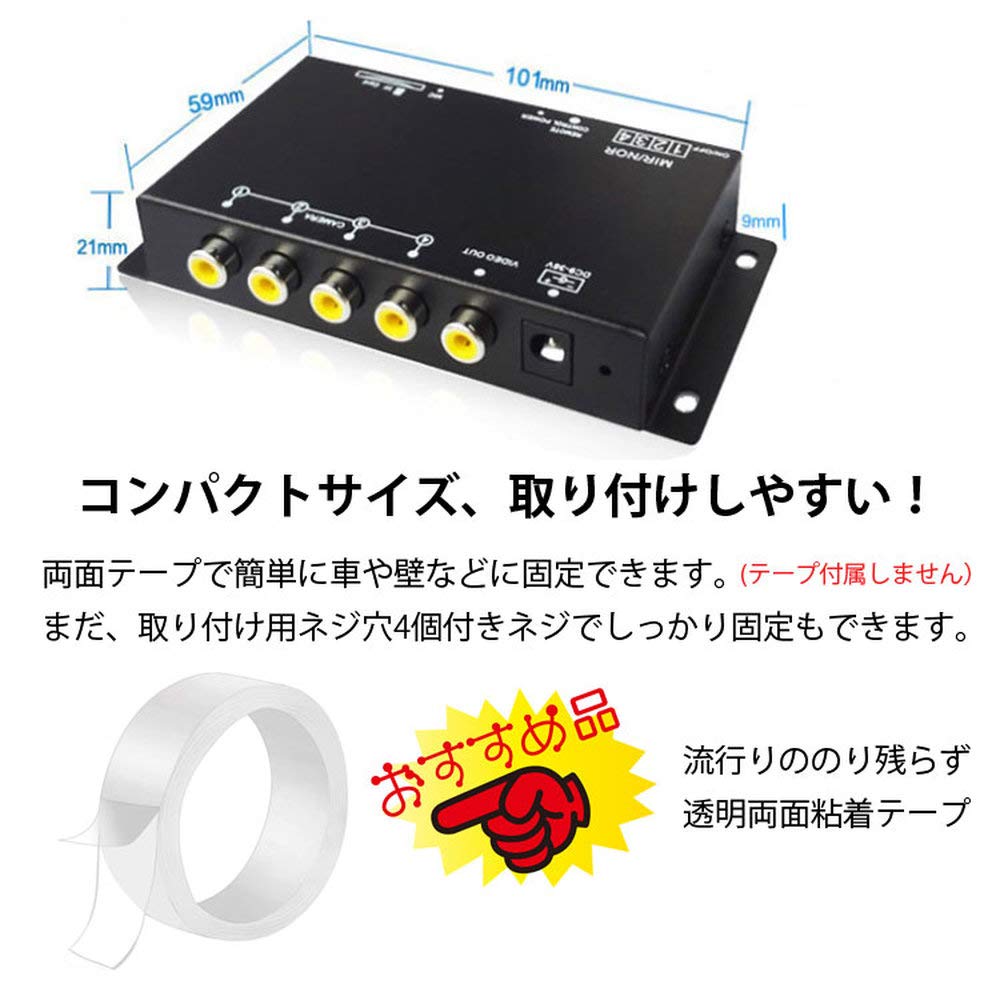

Size: Approx. 101*59*21mm
Weight: Approx. 156g
Power supply: DC 9-36V

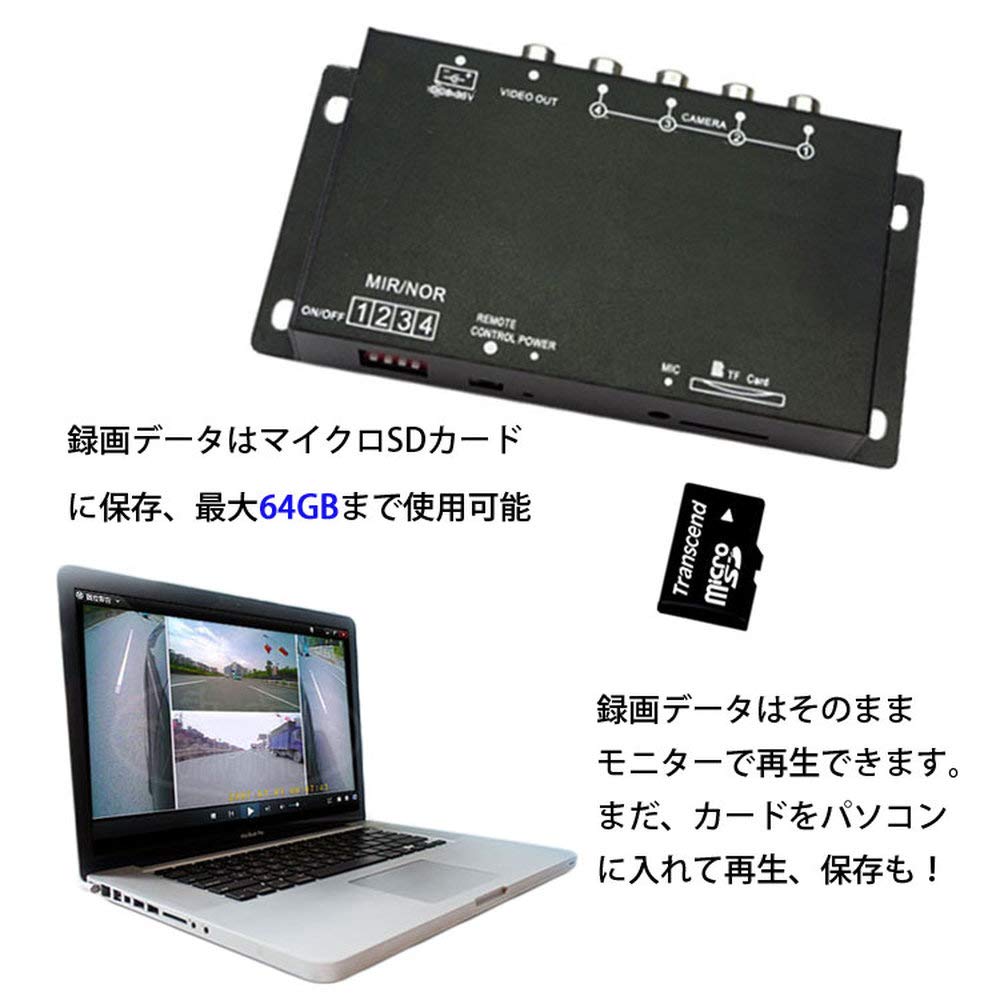

Micro memory card: Supports up to 64GB (card sold separately)

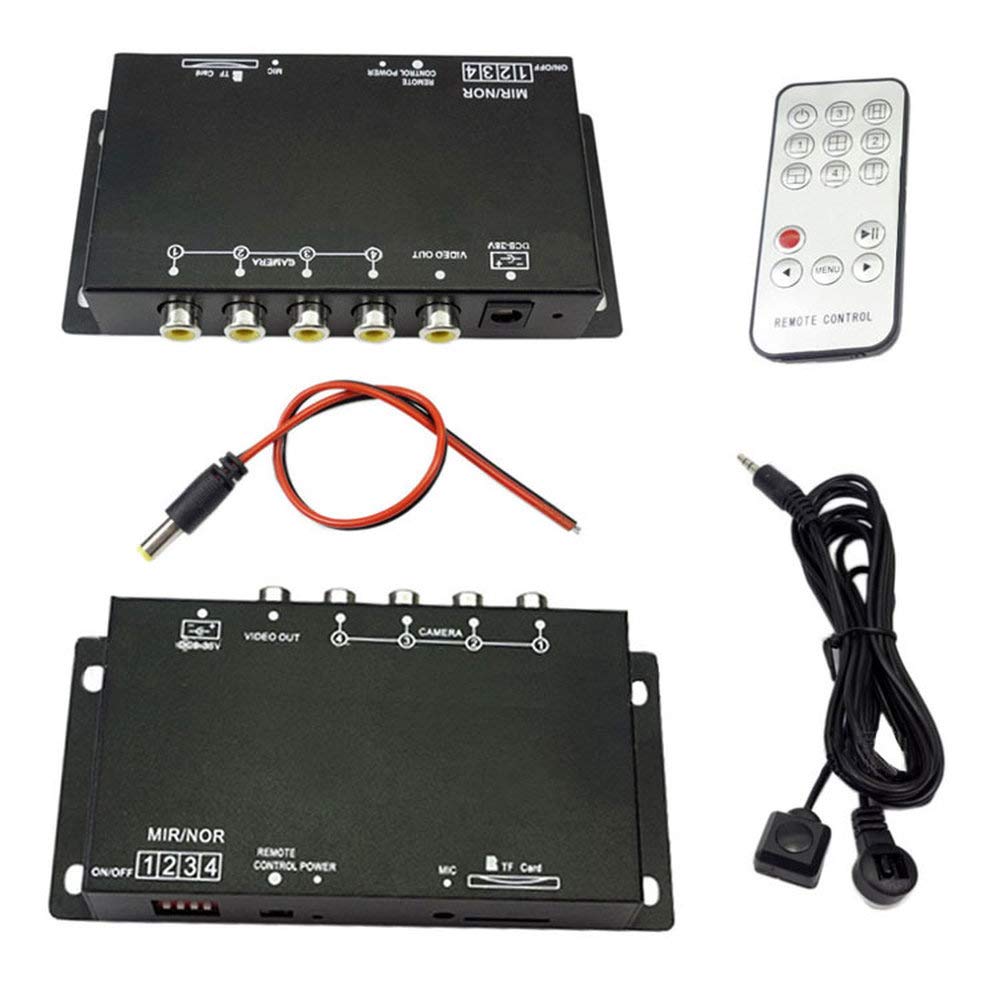

Set contents: Main unit, remote control, sensor, DC power cord, English manual

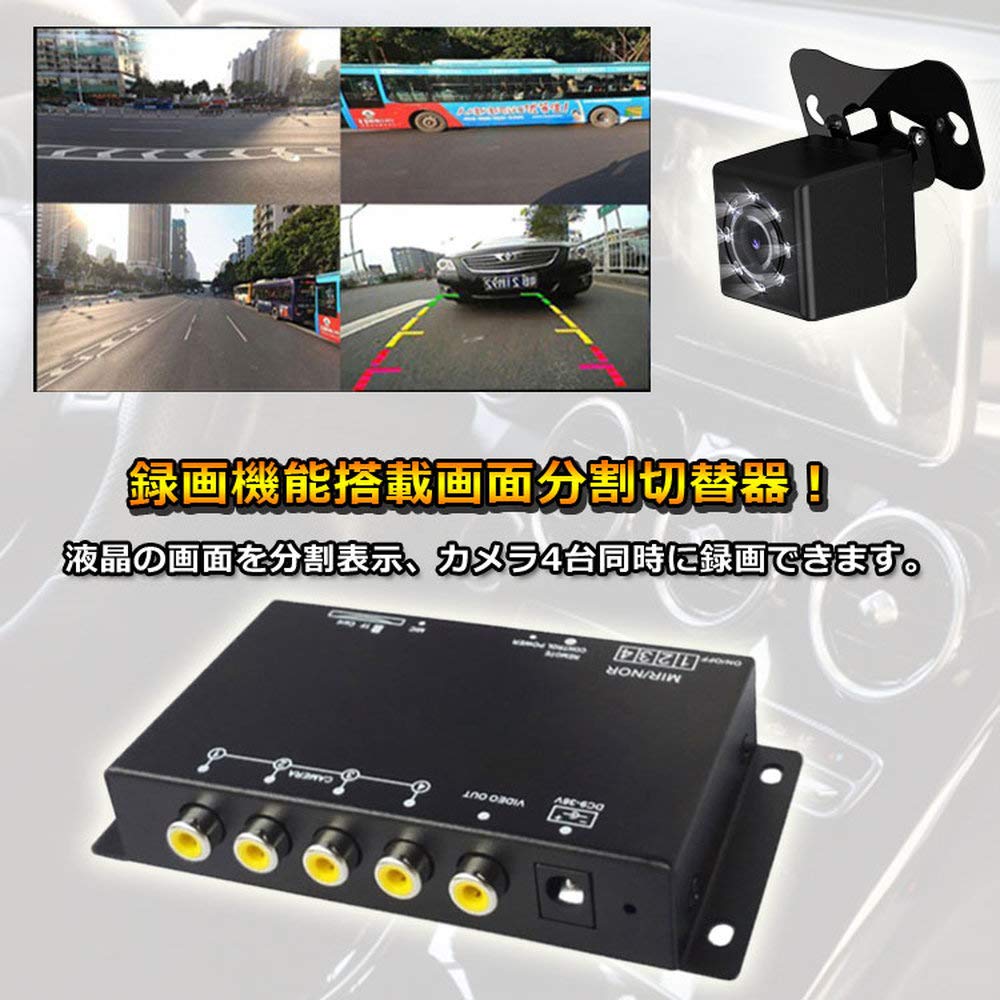

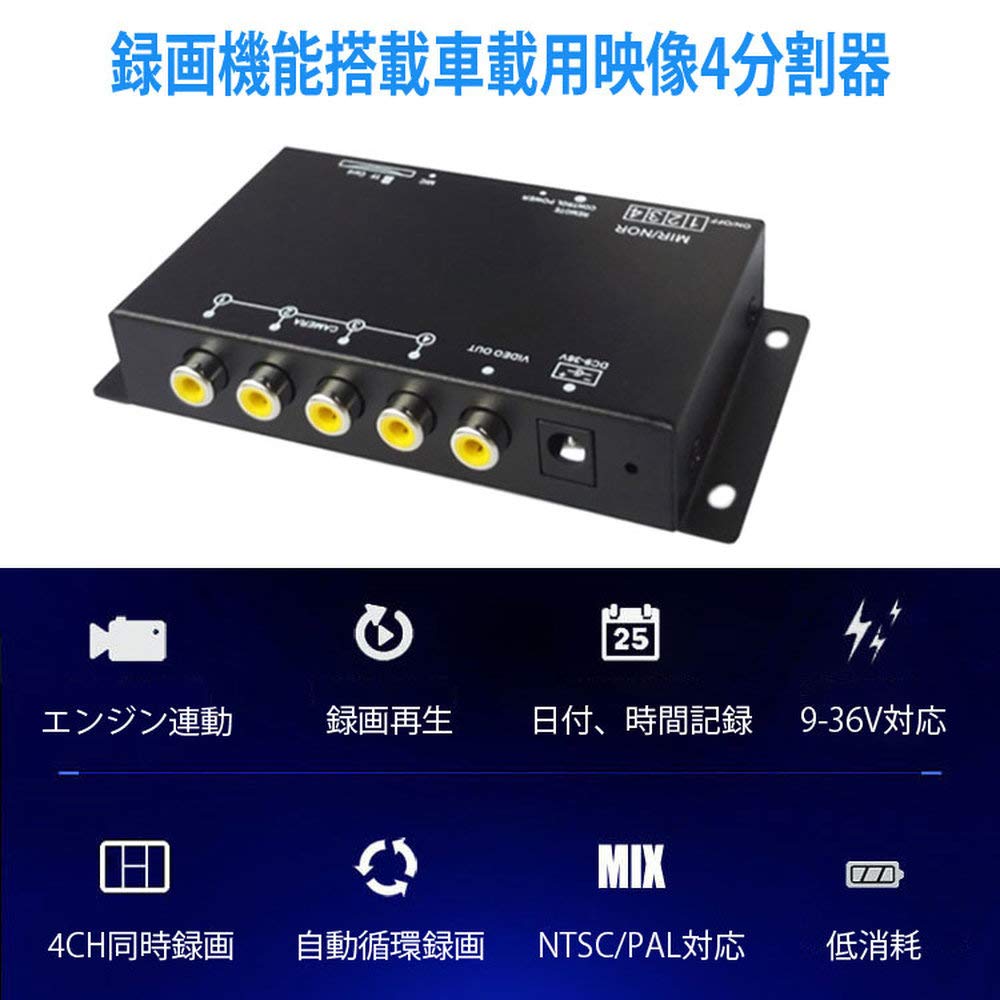

Screen splitter with recording function
*Note: Recording function: Only the screen displayed on the monitor will be recorded.
For example: In the case of a 4-split display, 4 cameras will record simultaneously. In the case of a single channel display, only the camera on that channel will record.
You can display and centrally manage up to four cameras, including front, rear, and side cameras, on one screen.
Tip: For front and rear cameras, please search for "B021" in the store. For side cameras, please search for "BK1100" in the store.

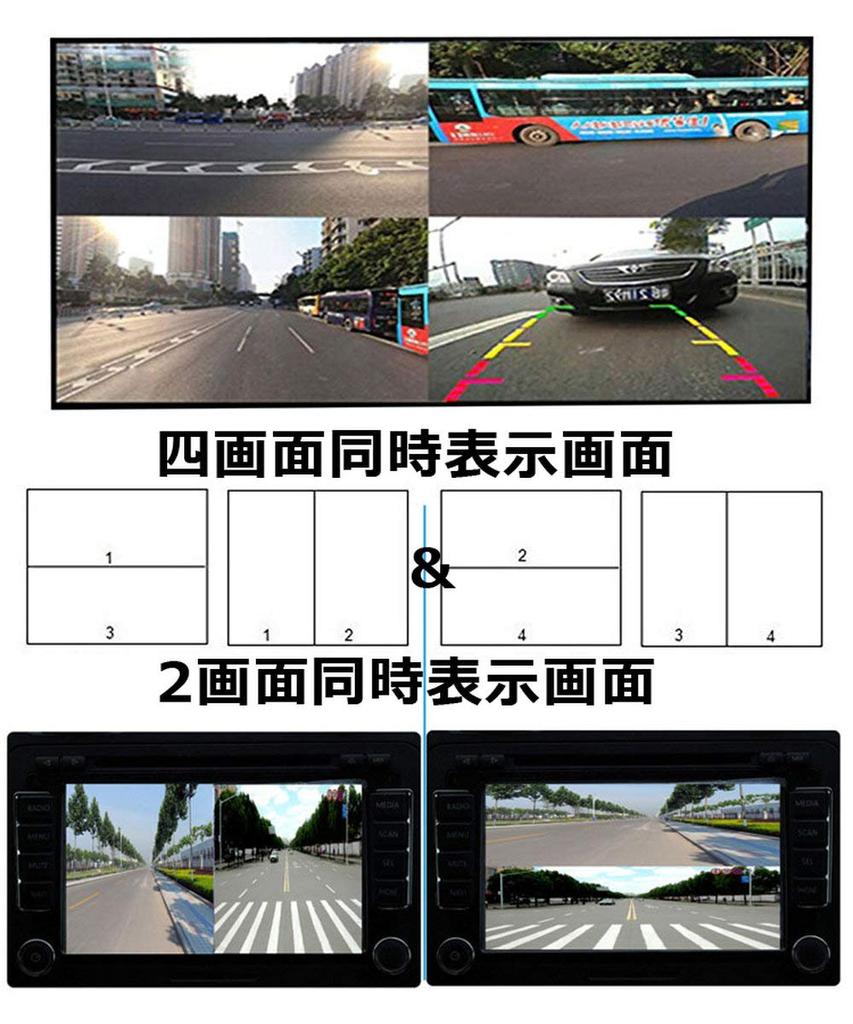

There are various display patterns available, such as 4-split, 3-split, 2-split, and 1-screen. (The number of screen splits at startup varies depending on the number of input signals.)

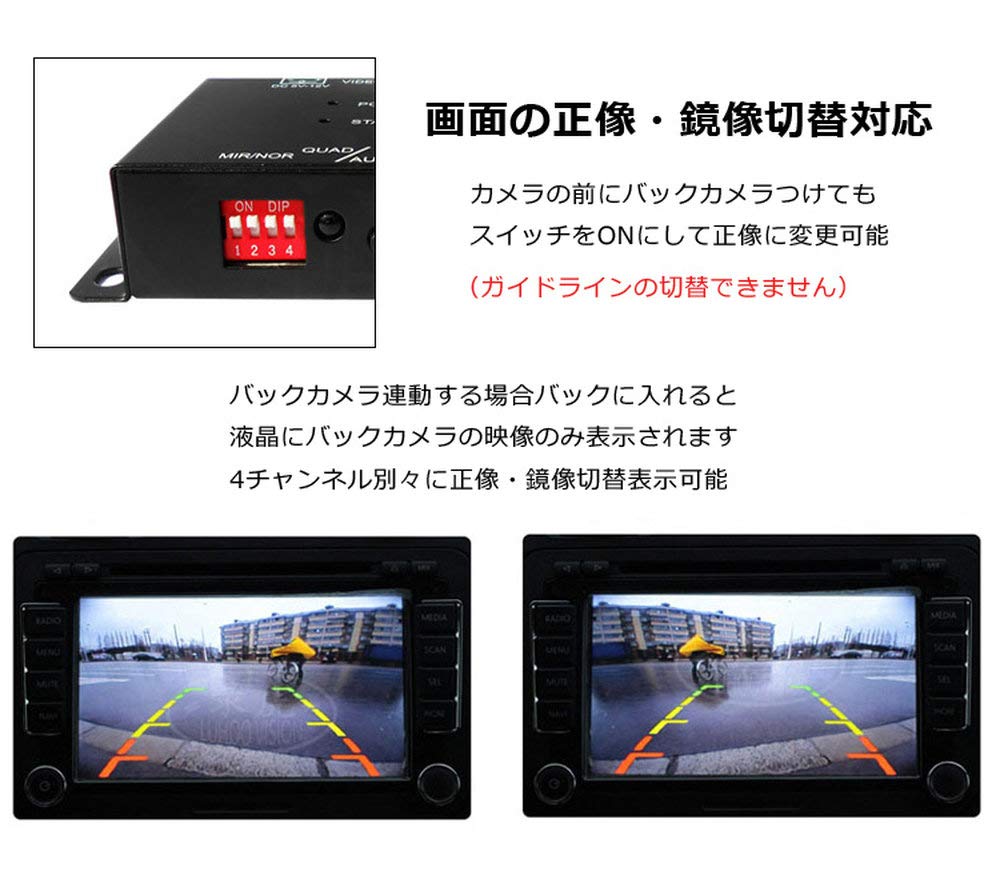

Equipped with a switch for changing between normal and mirrored images, you can freely switch between normal and mirrored images according to the mode you need.
It comes with a remote control, allowing you to easily control the video screen split pattern at your fingertips.
The versatile RCA input/output terminals allow you to connect a variety of devices, and you can simultaneously check DVD and terrestrial digital signals while viewing camera footage.
This is usually a car item, but if you have a commercially available DC12V AC adapter, you can use it in conjunction with a security camera.
specification:
Switch: Positive/Mirrored image switchable
Supported video signals: PAL/NTSC (automatic recognition)
Resolution: VGA640(W)*480(H)
Input/Output Terminals: 4 inputs (RCA composite terminals)
Output terminal: 1 output (RCA composite terminal)
Display method: 1 screen, 2 screens, 3 screens, 4 screens
Video format: AVI
Micro memory card: Supports up to 64GB (card sold separately)
Power consumption: about 2W
Power supply: DC 9-36V
Weight: Approx. 156g
Size: Approx. 101*59*21mm
Set contents: Main unit, remote control, sensor, DC power cord, English manual
◇Notes
*The exhibit does not include the in-car DVR, in-car camera, memory card, or other items.
*These are manufacturer-announced values and are not actual measurements. Specifications may change depending on the time of purchase.
*Japanese instructions are not included. We do not provide support for usage.
