Rf Test Board, 18 Functional Modules Rf Demo Kit Nanovna Test Filters Vector Network Analyzer Board Attenuator

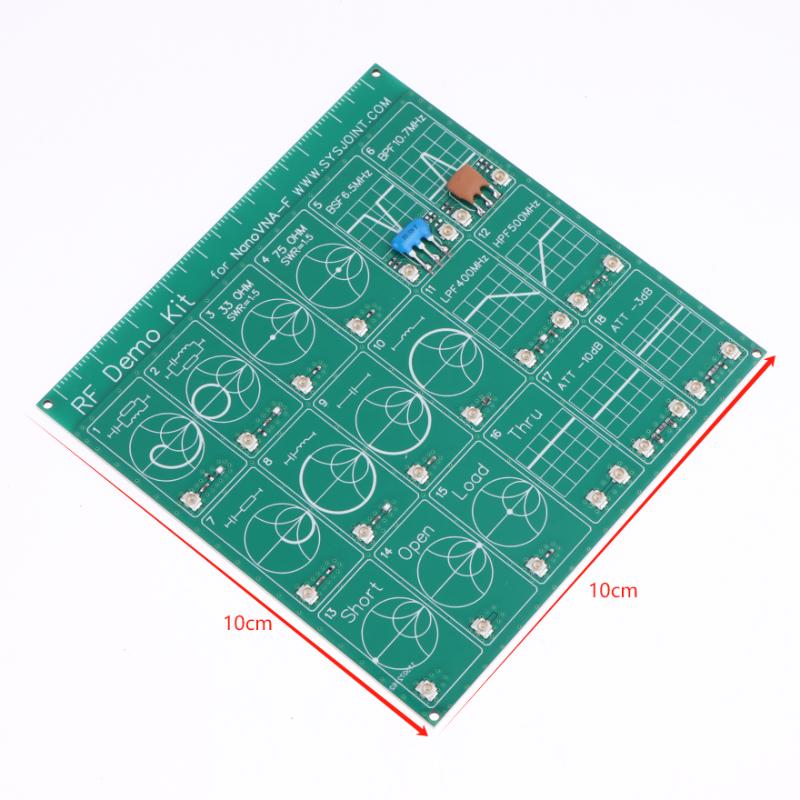

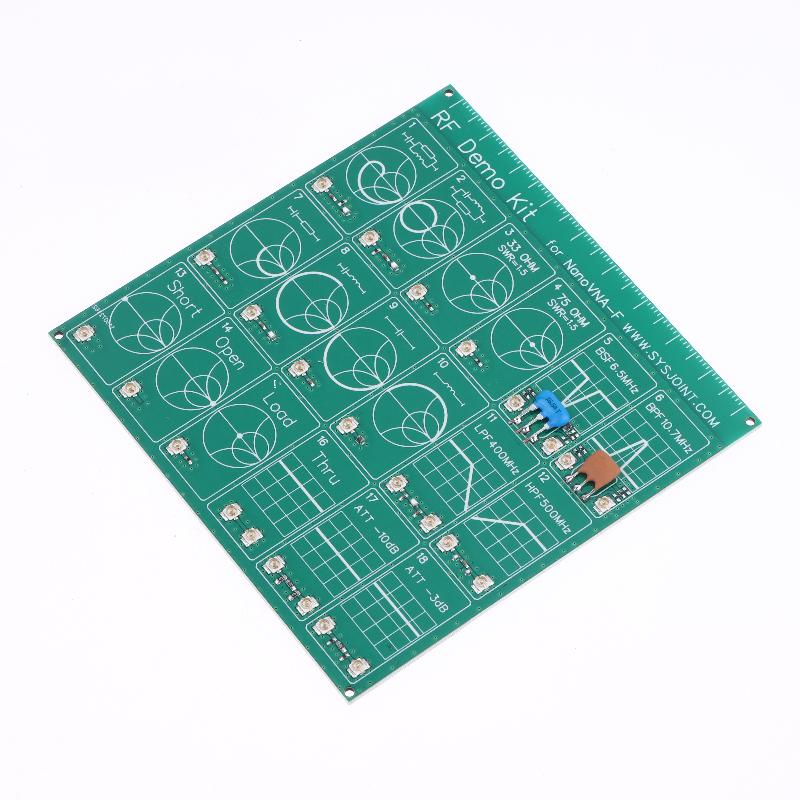

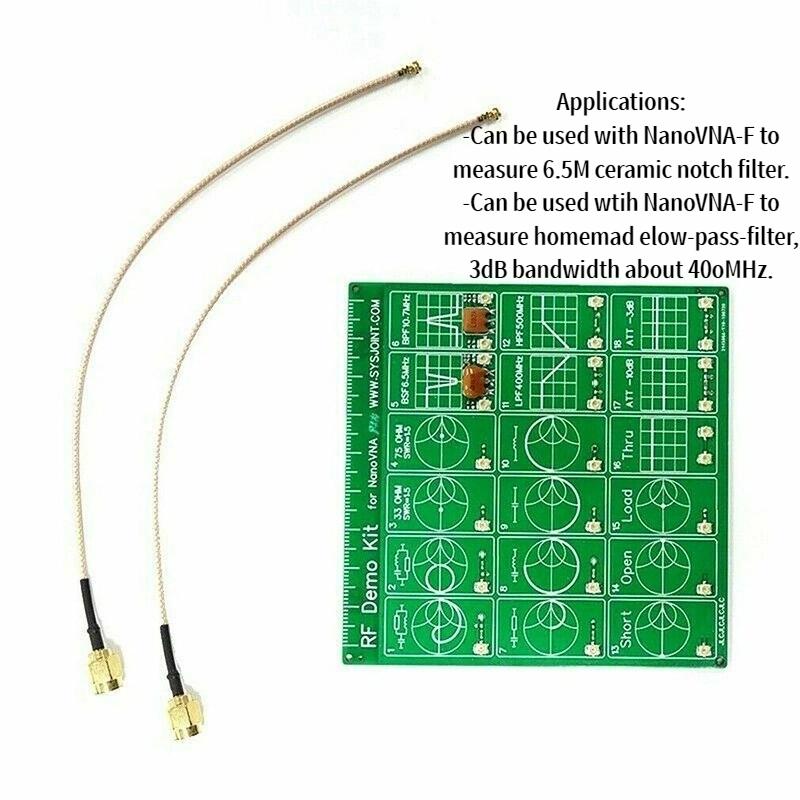

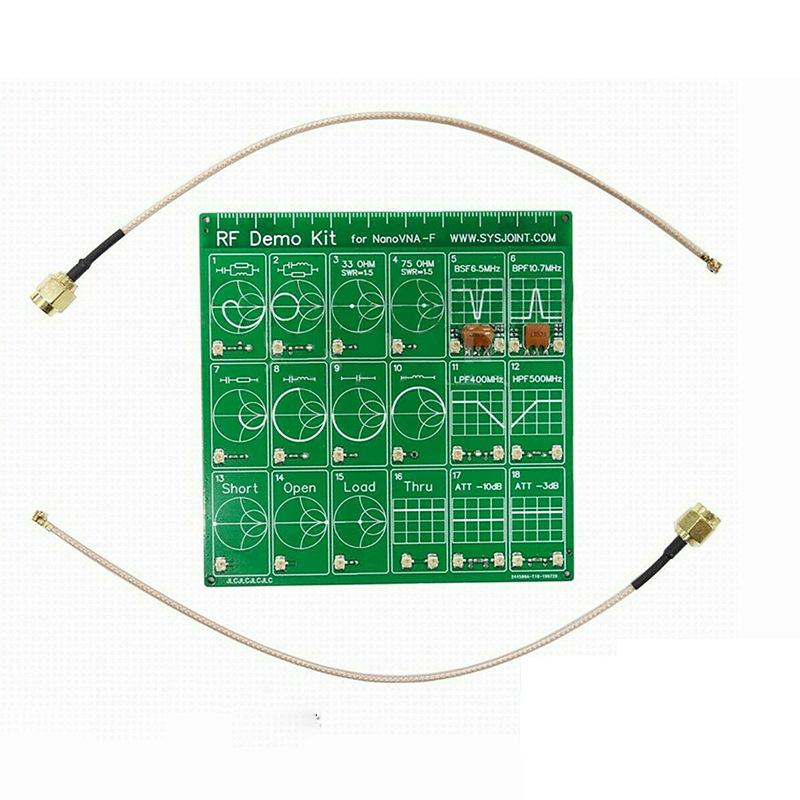

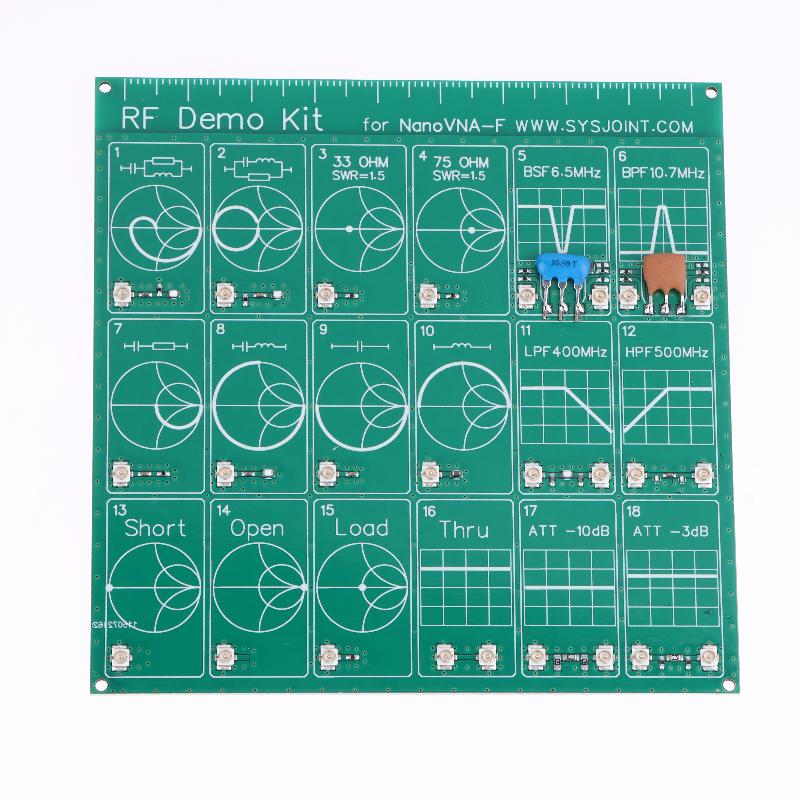

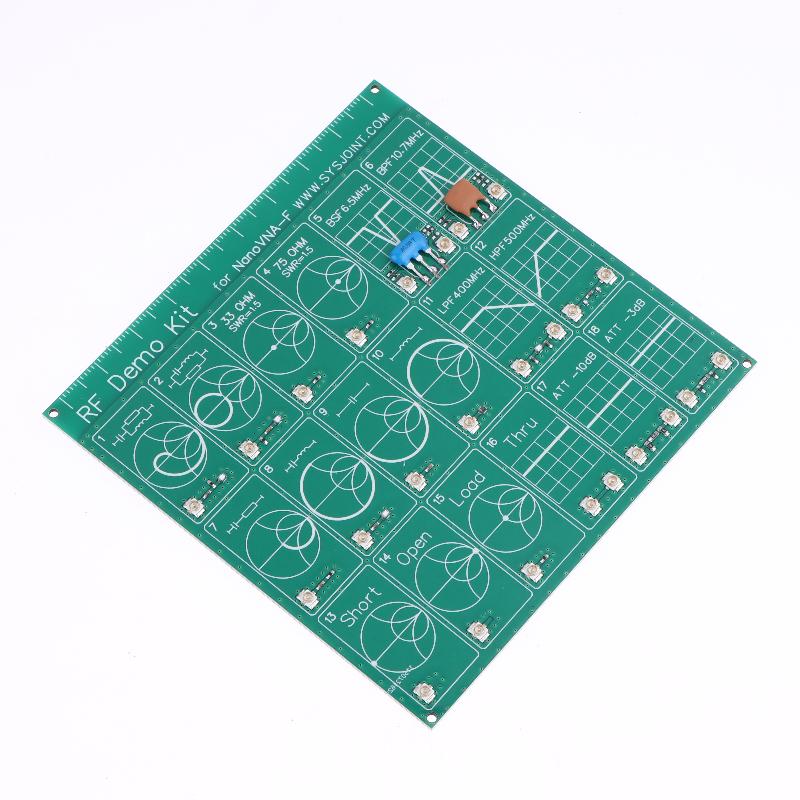

New and high quality! 1.RF Demo Kit RF test board demo calibration board for learning 2.Vector Network Analyzer , Antenna Analyzer test calibration learning. 3.The board is totally integrated with 18 functional modules. 4.Equipped with 2 pcs of UFL patch cord for convenient use. 5.Each module is well selected of high quality and great reliability. Short-wave low-pass filter LPF: 30MHz FM high-pass filter HPF: 100MHz Commonly used SAW bandpass filter BPF: 433MHz Video ceramic trap BSF: 6.5MHz RLC series and parallel circuit Includes R, L, C and combinational circuit Open /short circuit and load calibration circuit Used for learning about vector network analyzers, including: Series 1. RLC and Parallel Circuit 1 Series 2. RLC and Parallel Circuit 2 3. 33 ohm resistor, vertical SWR wave = 1.5 4. 75 ohm resistor, SWR permanent wave = 1.5 5. BSF ceramic notch filter, center frequency 6.5 MHz 6. BPF ceramic filter, center frequency 10.7 MHz Series circuit 7. RC series circuit 8. LC 9. Capacitor 10. Inductor 11. Homemade low-pass filter, 3dB bandwidth 400 MHz 12. Homemade high-pass filter, 3dB bandwidth 500 MHz 13. Short-circuit calibration 14. Open-circuit calibration 15. 50 ohm load calibration circuit 16. Through-circuit circuit 17. 10dB attenuation circuit 18. 3dB attenuation circuit Each set of functional circuits. Measuring a 6.5 ohm ceramic notch with NanoVNA-F Package quantity:1set Note: Please allow 2-3 differences due to manual measurement. The above dimensions are for reference only. As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
