Description
Operating, storage and transportation conditions
Operating temperature: +5℃-40℃
Temperature: -10℃ -55℃
Operating humidity: 20% -80% relative humidity
Humidity: less than 93% relative humidity
Atmospheric pressure: 86 kPa-106 kPa
Atmospheric pressure: 50 kPa -106 kPa
Water cooling
: > 50 ml/min (200 kPa)
Air cooling
: >1.5 l/min (200 kPa)
Technical:
Low-speed tip: 20:1 speed
Clip type: push-button
Spraying: through the inner channel and outside
Applicable boron: Ø2.35 mm (ISO1797-1)
Maximum speed: 2000 rpm

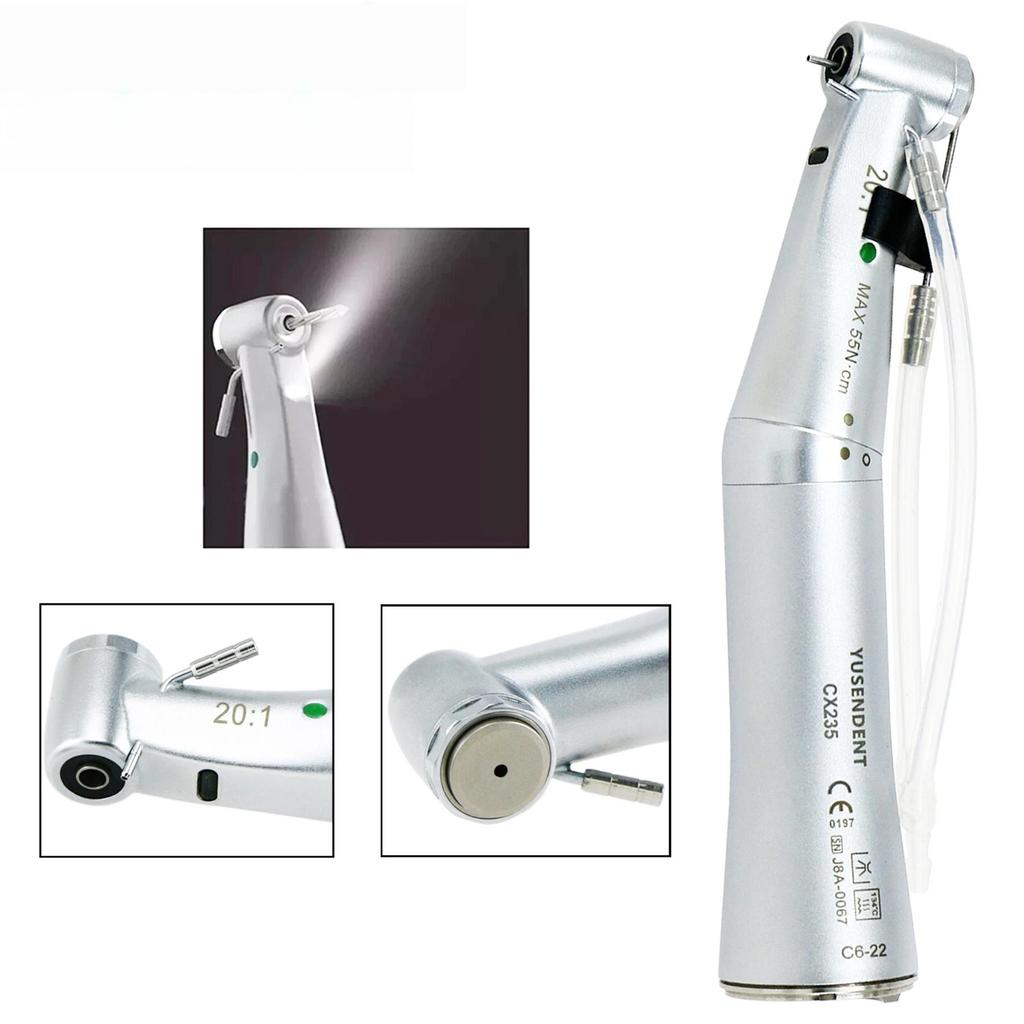

With LED backlight, for the implant
Internal cooling system: Kirschner/ Meyer
Technical characteristics of the needle
ISO 1797-1, 1 tip type, diameter 2.35 mm, minimum landing length 11 mm, total length less than 23 mm, maximum diameter of the working area 2 mm
ISO 1797-1, type 2 rack, diameter 2.35 mm, minimum installation length 33 mm, total length less than 50 mm, maximum diameter of the working area 2 mm
ISO 1797-1, type 3 rod, diameter 1.6 mm, minimum landing length 11 mm, total length less than 23 mm, maximum diameter of the working area 2 mm
