Description:
- TIG welding is a welding method using tungsten rods as electrodes and argon gas for protection.
- During welding, argon gas is continuously ejected from the nozzle of the welding torch, and a protective layer is formed around the arc to block the air to prevent oxidation of the tungsten electrode, the molten pool and the adjacent heat-affected zone, thereby obtaining a high-quality weld.
- It does not react chemically with metals or metals, making the metallurgical reaction during welding simple and easy to control, thus providing good quality welds to provide good conditions.
- The tungsten arc is very stable and stable combustion even under low current conditions (<10A), especially suitable for thin plate material welding.
- Since the filler wire does not pass current, no splash is generated and the weld bead is beautifully formed.
- AC argon arc welding can automatically remove the oxide film on the surface of the weldment during the welding process. Therefore, some chemically active non-ferrous metals such as aluminum, and alloys can be successfully welded.
Specification:

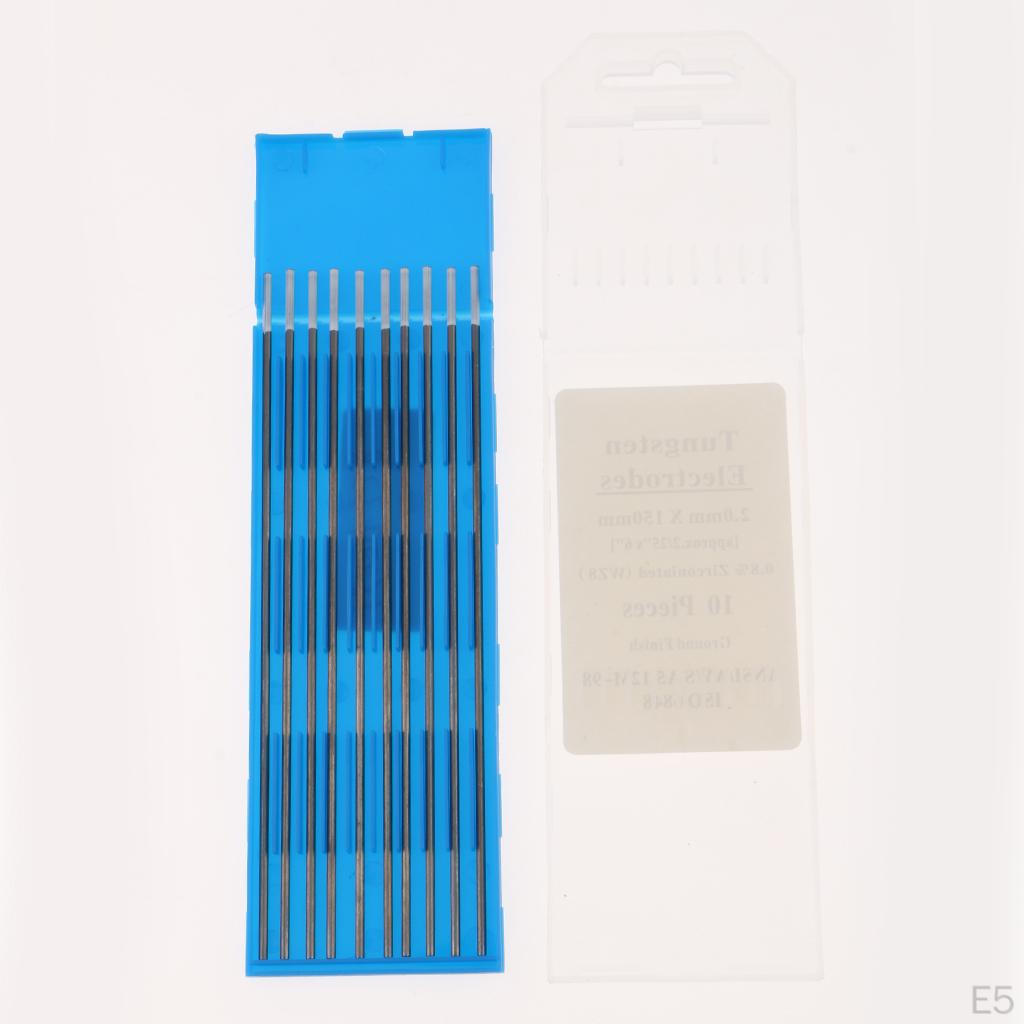

- Material: zirconium tungsten
- Color: white head
- Core diameter: 1.0/1.6 / 2.0 (mm)
- Type: Zirconium Tungsten Electrode (WZ8)
- Welding current: 80A-400 (A)
- Length: 150 (mm)
- Type 1 Specifications: 1.0x150 mm / 0.04x5.90 inch
- Type 2 Specifications: 1.6x150 mm / 0.06x5.90 inch
- Type 3 Specifications: 2.0x150 mm / 0.07x5.90 inch
- Quantity: 10 pieces / box
Package Includes:
10 Pieces Argon Arc Welding
