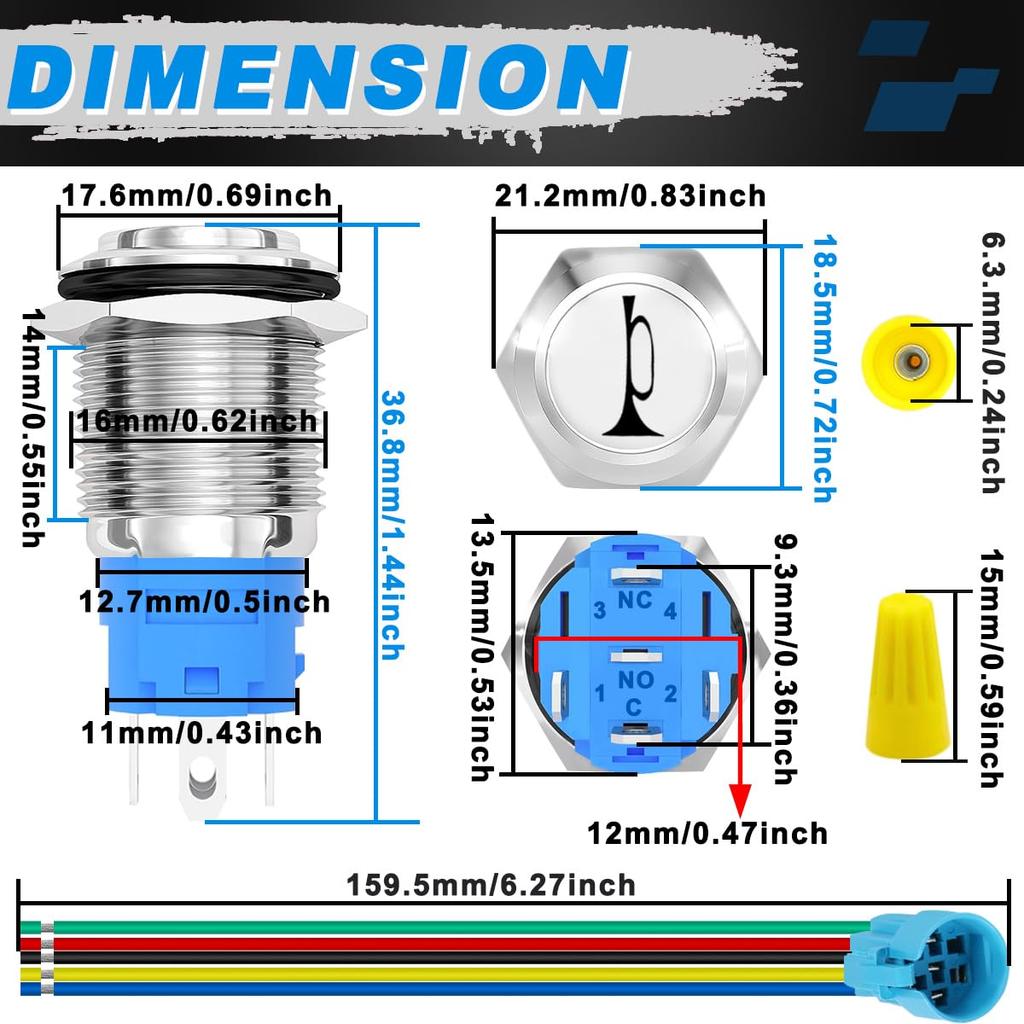

【Dimension】Horn Switch Diameter: 17.6mm/0.69inch, Height: 36.8mm/1.44inch, Mounting Hole Size: 16mm/0.62inch, Cable Length: 150mm/5.90inch, Wire Gauge: 22AGW, Connection Plug Holes: 7 Holes, Wire Cap Height: 15mm/0.59inch, Width: 6.3mm/0.24inch
【Widely Used】Horn switch is widely used in motorcycles, electric vehicles, automobiles, RVs, ships, trucks, coffee machines, industrial equipment, medical equipment. Suitable for almost any car motor start and power start device, also be used as access control button

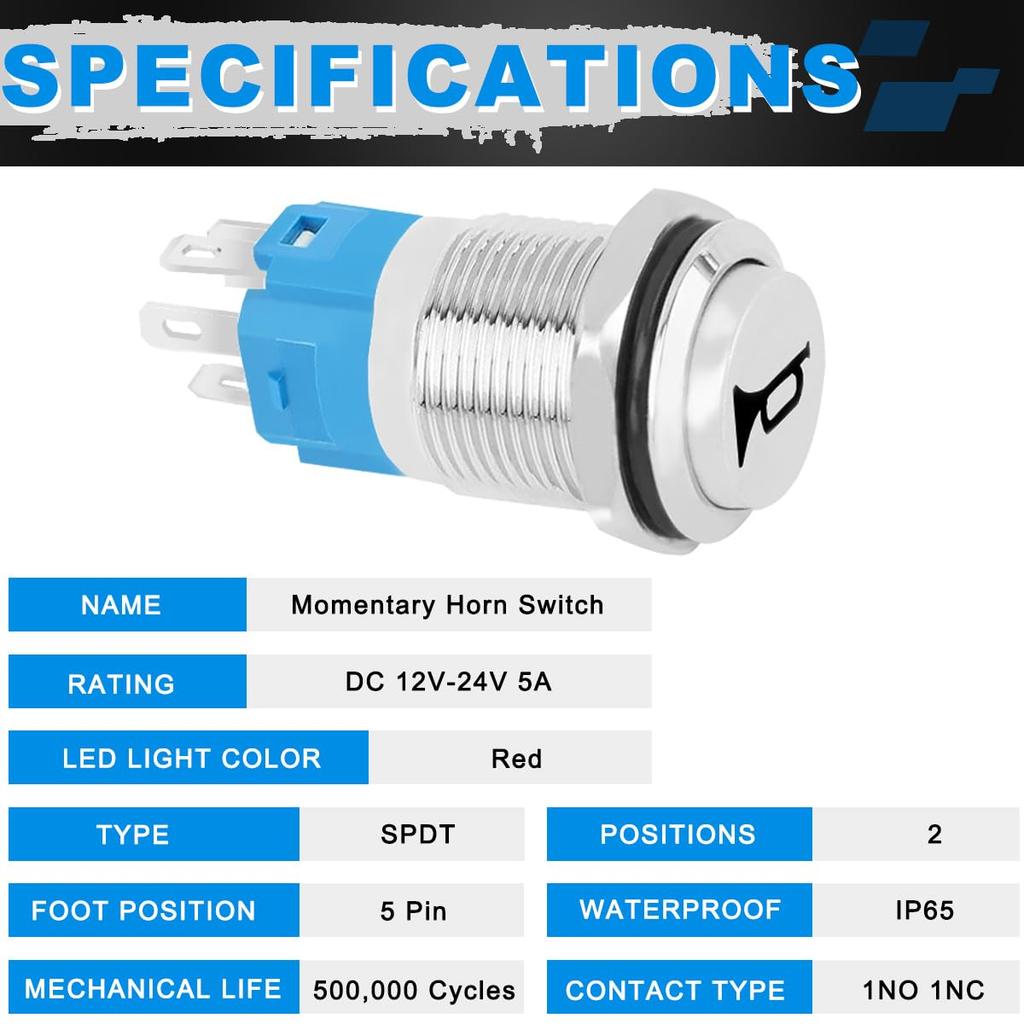

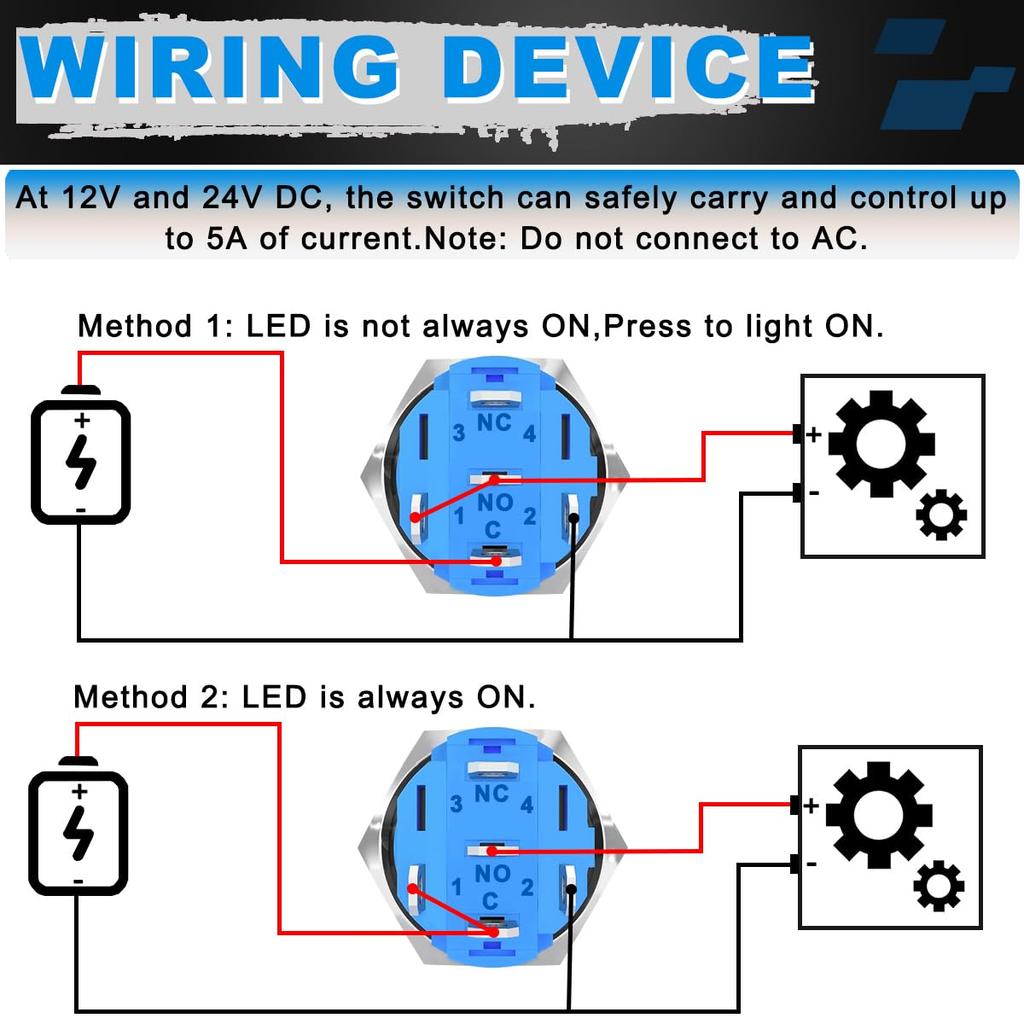

【DC -24V 5A】With and 24V DC, the switch safely transmit and control current up to 5A. Note: Do not connect to AC
Waterproof: IP65. 6 completely prevent foreign objects and dust from entering and 5 prevent from entering and damaging the device from any direction. This means the switch will work normally in humid and splashy environments

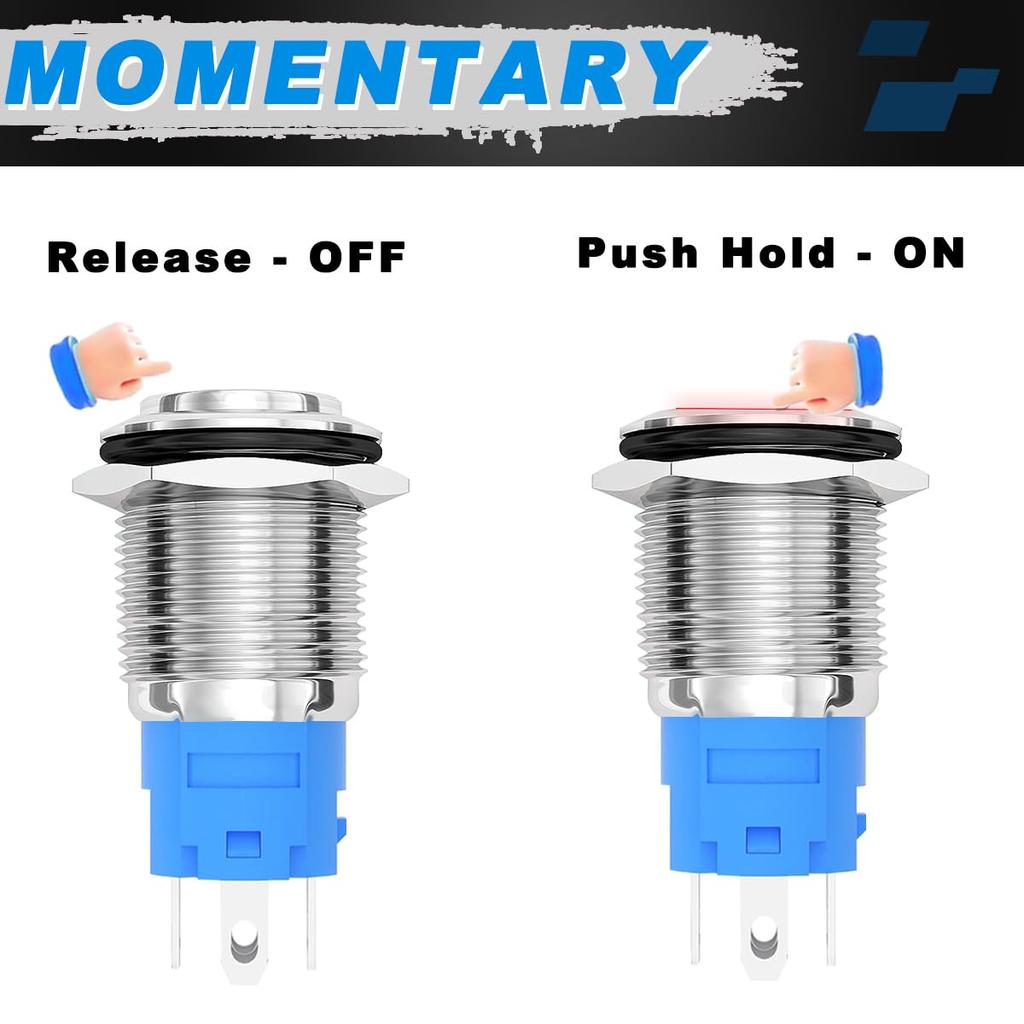

[Instant Operation] The circuit is connected immediately when you press the switch, and immediately disconnect the circuit. Suitable for situations where fast response and frequent operation is required
[Design Features] Silver plated contacts ensure stable current transmission, reducing resistance and signal distortion. Silver has excellent oxidation reduction properties and forms an oxide film on the surface of the contact to prevent further oxidation and extend the service life of the contacts

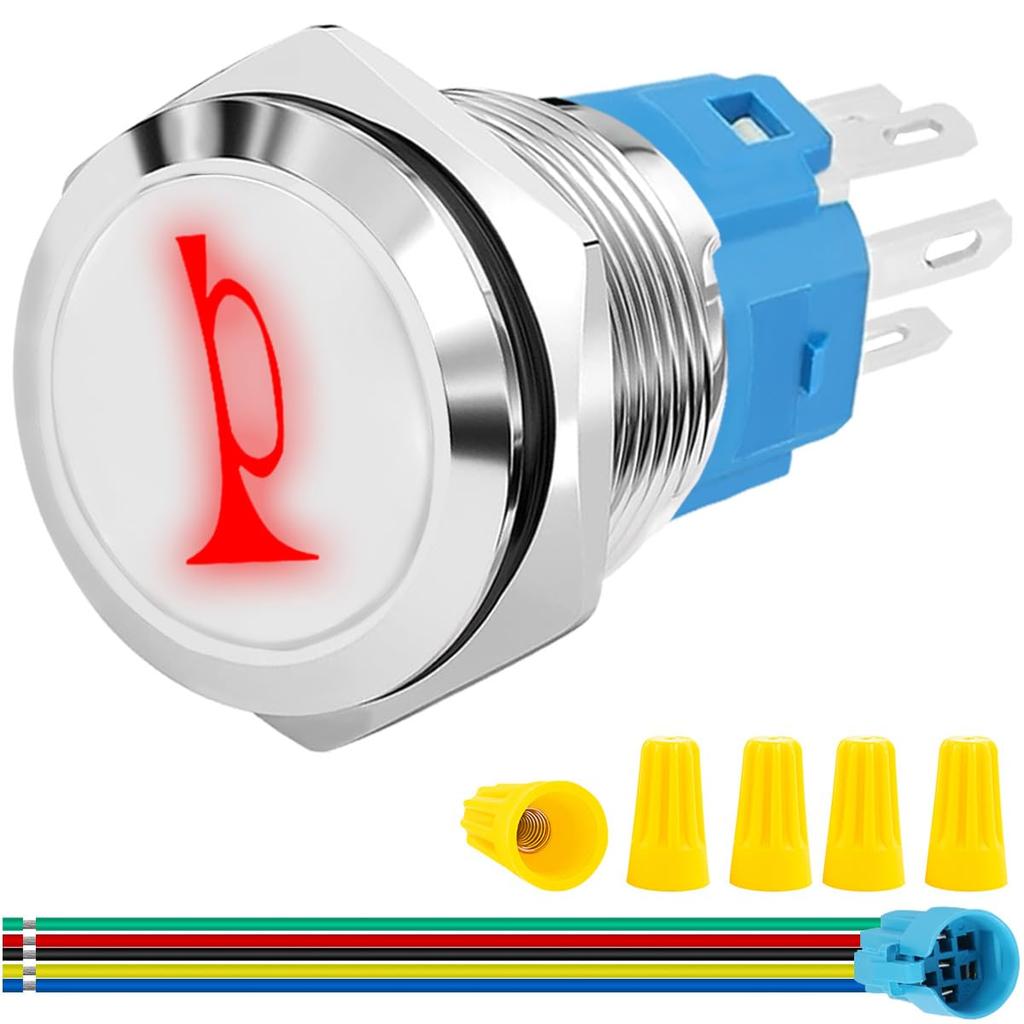

【Package included】1 x 16mm Horn Switch with Red LED Light, 1 x Pre-wired Connector, 1 x Rubber Ring, 5 x Wiring Caps
