Product Introduction
Features
- Extremely easy clamping reduces leak detection time.
- The sensor's easy-to-clamp shape reduces work time.
- The comparator function notifies you of the comparison results with sound and light, allowing you to quickly identify the leak location.
- The filter function displays only the power frequency component.
Uses
- For leak detection.
- For checking grounding wire leakage current.
- For preventive equipment maintenance.
- For checking load current such as breaker capacity.
- For indoor electrical work and electrical equipment construction and maintenance.

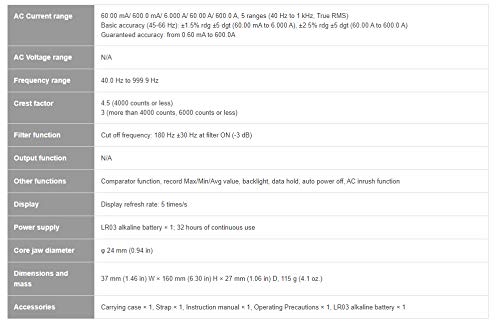

Specifications
Leakage Current (mA): 60
AC Current (A): 600
Detection Method: True RMS (RMS)
Power Supply (V): One AAA Alkaline Battery (LR03) (Included)
Width (mm): 37
Depth (mm): 27
Height (mm): 160
Power Supply: One AAA Alkaline Battery (LR03) (Included)
Maximum Display (Counts): 6000
Maximum Measurement Conductor Diameter (mm): 24mm
Compliant with: EN61010 (Safety), EN61326 (EMC), Current Measurement Category: CAT3 300V
・AC Current (A): 60.00m/600.0m/6.000/60.00/600.0
・Measurement Functions: AC Current, Inrush Current, Peak Value, Frequency, Comparator Function (COMP), Event Function (EVENT)
・Functions: Auto Range, Manual Range (RANGE), Value Hold (HOLD), Auto Hold (AUTO HOLD), Backlight, Low-Pass Filter (FILTER), Max/Min/Avg, Auto Power Save (APS), Battery Level, Overload Warning
Caution (Disclaimer) > Please Read
● Use within intended use. ● Time specifications are not accepted.
Quantity: 1
Set Contents/Accessories: Carrying Case x 1, AAA Alkaline Battery (LR03) (for Built-in Monitor) x 1, Strap x 1, Instruction Manual x 1
