Feature:
1. 4?pole 12?slot high?torque motor design and CNC machined 6061 T6 billet aluminum heat sink.
2. High?purity copper windings with a shaft Diameter of 3.175mm0.1in can maximize efficiency. Precision design can achieve maximum energy conversion.
3. Precisely balanced rotor has sufficient smoothness to achieve the best reliability and maximum RPM.
4. The programming card has a portable design and can be carried with you, which is convenient and easy to use.
5. With ITEM, VALUE, OK, RESET 4 buttons and indicator light, it is easy to set up.
Specification:

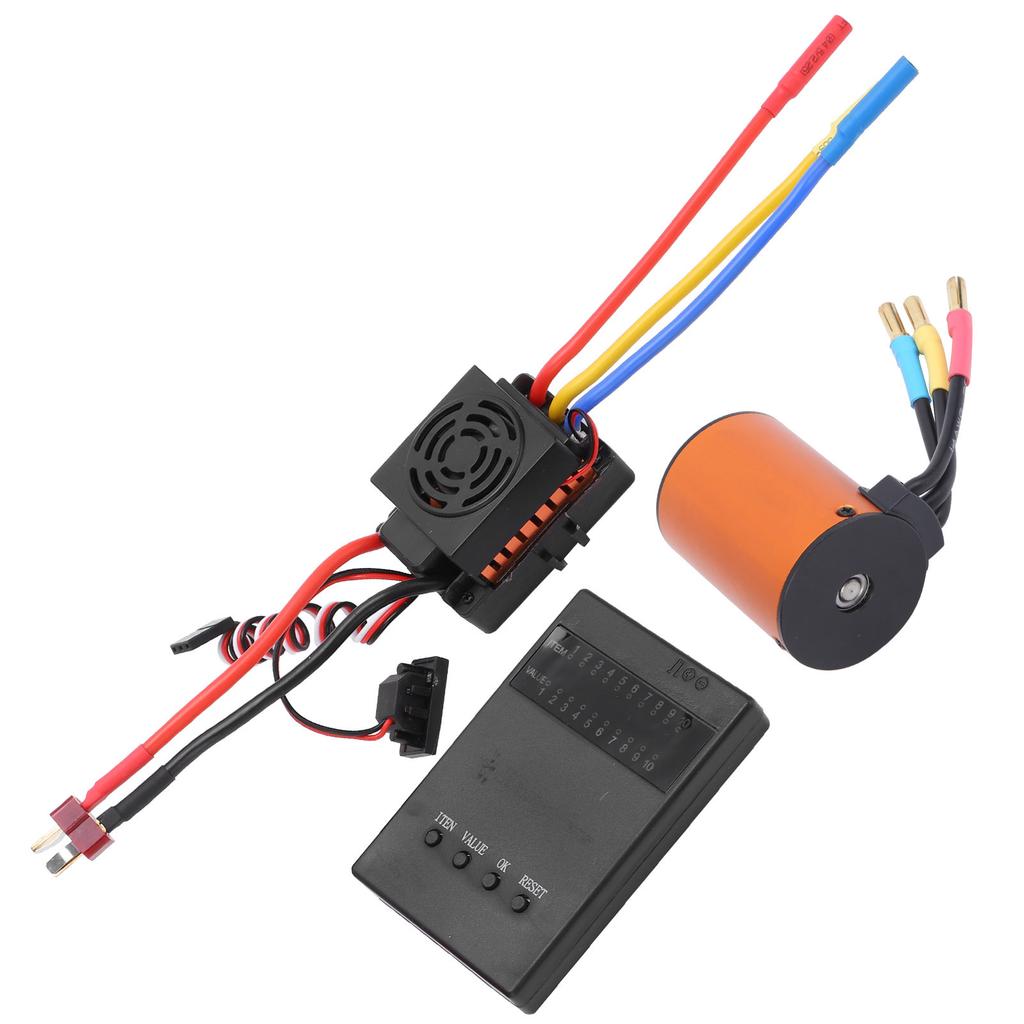

Item Type: 3650 3500KV Brushless Motor + 60A ESC + Programming Card Combo
Material: Aluminum Alloy + Copper + Plastic
Product Color: As Pictures Shown
Product Weight: Approx. 316g 11.2oz
Compatible: Fit for 18 110 RC Car
Motor Parameters:
Diameter: Approx. 36mm 1.4in
Length: Approx. 50mm 2.0in
Shaft Length: Approx. 15mm 0.6in
Shaft Diameter: Approx. 3.175mm 0.1in
Wattage: 900W
Maximum Voltage: <12V
Maximum Amperage: 75A
KV (rpmvolt): 3500KV
Maximum Speed: 50000
Plug Type: 4mm Golden Banana Plug
ESC Parameters:
Continuous Current: 60A
Peak Current: 360A
Applicable Power Supply: 23S LiPo 49S NiMh (not included)
Bec: 5.8V 3A
Power Plug: T Plug male connector
Programming Card Parameters:
Low Voltage Cutoff: 3.7V 3.6V 3.5V 3.4V 3.3V 3.2V 3.1V 3.0V 2.9V 2.8V 2.7V 2.6V
Startup Mode: Mediumsoftstrong
Maximum Braking Force: 50percent , 25percent , 75percent , 100percent (25A, 35A, 45A, 60A), 25percent , 50percent , 75percent , 100percent (80A, 120A)
Maximum Reverse Force: 25percent , 50percent , 75percent , 100percent
Neutral Range: 9percent , 6percent , 12percent Working Status.
Package List:
1 x Motor1 x ESC1 x Programming card1 x Manual4?pole 12?slot high?torque motor design and CNC machined 6061 T6 billet aluminum heat sink.
High?purity copper windings with a shaft Diameter of 3.175mm0.1in can maximize efficiency. Precision design can achieve maximum energy conversion.
Precisely balanced rotor has sufficient smoothness to achieve the best reliability and maximum RPM.
The programming card has a portable design and can be carried with you, which is convenient and easy to use.
With ITEM, VALUE, OK, RESET 4 buttons and indicator light, it is easy to set up.
